Fanvil X3SP - Telephone IP Ecran Couleur Rétro-Eclairé 2 Lignes de SIP PoE Sans Alimentation

Chargement...

-39%

Telephone IP Ecran Rétro-Eclairé 2 Lignes de SIP X3/X3P

Ce produit est remplacé par:

Fainvil X303/X303P est un téléphone SIP économique conçu pour les entreprises et doté d'un écran couleur performant.

Voir le Produit

Fanvil - X303P

Prix Normal : 634,80 Dh TTC

Votre Prix :418,80 Dh TTC

Hors Taxe : 349,00 Dh HT

En promotion

Téléphone 4 lignes SIP économique doté d'un écran couleur performant. *Sans Alimentation

Téléphone SIP d'entrée de gamme avec écran couleur Points Forts, Téléphone de bureau avec jusqu'à 4 comptes SIP, Conférence jusqu'à 6 participants, 3 touches de lignes et 4 touches de fonction et écran LCD couleur 2.4", Alimentation PoE "un seul câble", Qualité sonore HD Full Duplex. Compatible toutes plateformes SIP

En Stock

Description
Caractéristiques Techniques
Produits Complémentaires
Video
Avis des clients

Fiche Technique

Description du Produit

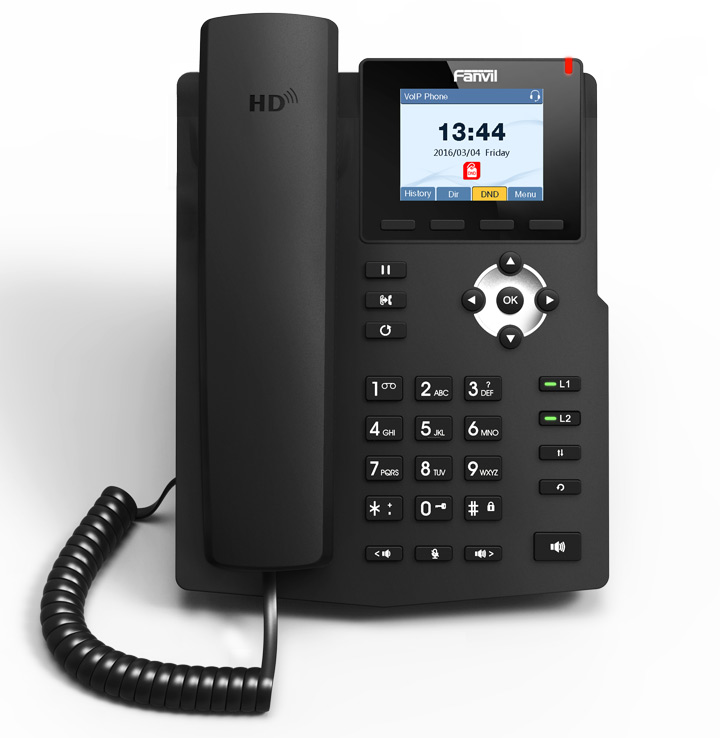

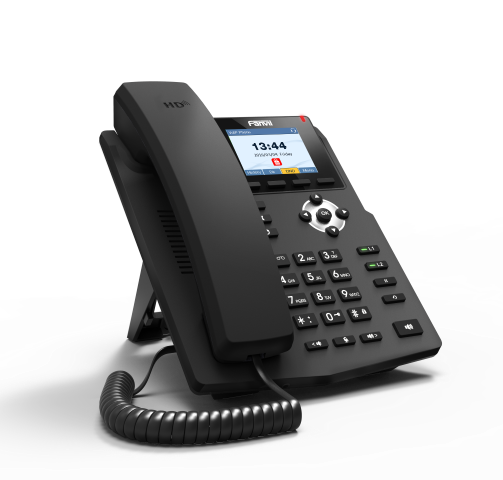

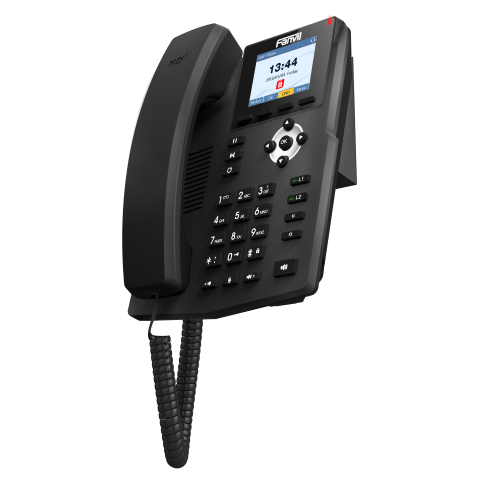

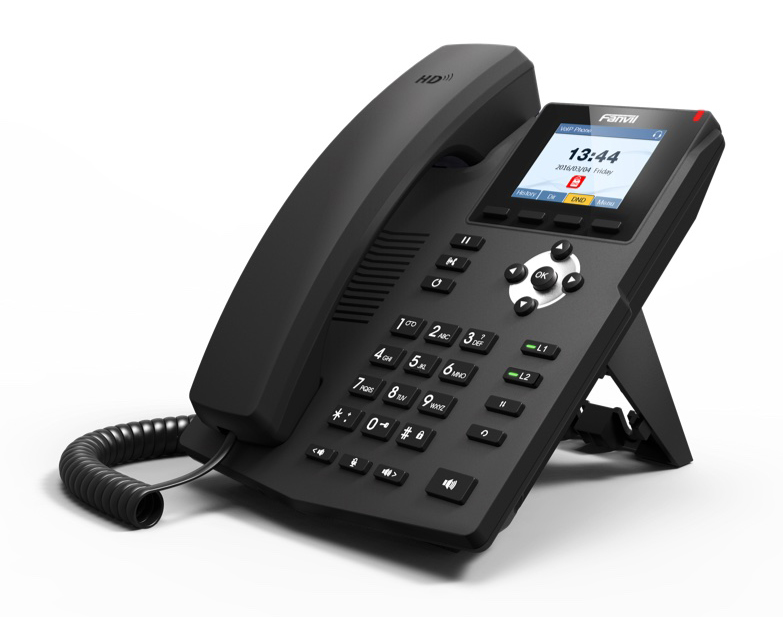

The Fanvil X3SP IP Phone is an industrial masterpiece, offering superior user experience and simplicity for home and office users with elegant appearance and intelligent software.

Main Features

Call out / answer / reject

Mute / Unmute (microphone)

Call Hold / Resume

Call Waiting

Intercom

Caller ID Display

Call Forwarding (Always/Busy/No Answer)

Call Transfer (Attended/Unattended)

Call Parking/Pick-up (depending on server)

Redial

Do-Not-Disturb (per line / per phone)

Auto-Answering (per line)

Voice Message (on server)

Local 3-way Conference

Hot Line

Specifications

• 2.4 inch color-screen

• 2 SIP Lines

• HD Voice

• Support EHS Headphone

•Compatible with major platforms: Broadsoft, 3CX, Asterisk, Elastix, etc

User Friendly Graphical Menu with Help description

POE Enabled (X3SP)

Handset (HS) / Hands-free (HF) / Headphone (HP) mode

Desktop / Wall-mount installation

External Power Supply (X3S)

Economical and Environmental friendly package

Industrial Standard Certifications: CE/FCC

Call Features

Call out / answer / reject

Mute / Unmute (microphone)

Call Hold / Resume

Call Waiting

Intercom

Caller ID Display

Call Forwarding (Always/Busy/No Answer)

Call Transfer (Attended/Unattended)

Call Parking/Pick-up (depending on server)

Redial

Do-Not-Disturb (per line / per phone)

Auto-Answering (per line)

Voice Message (on server)

Local 3-way Conference

Hot Line

Phone Features

Initialization Configuration Wizard

Up to 5 User Accounts / Profiles with individual phonebook/call log/configurations/PIN

Phone Accessibility Control by User PIN

Intelligent Phonebook (up to 500 entries total)

Cloud Phonebook (XML)

Intelligent Contact Number Matching / Filtering

Call log (300 entries total, in/out/missed)

Call Connection Quality (QoS) Measurement and Indication

Voice Message Waiting Indication (VMWI)

Network Time Synchronization

Audio

HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz Frequency Response)

Wideband ADC/DAC 16KHz Sampling

Narrowband CODEC: G.711a/u, G.723.1, G.726-32K, G.729AB

Wideband CODEC: G.722

Full-duplex Acoustic Echo Canceller (AEC) – Hands-free Mode, 96ms tail-length

Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR)

Packet Loss Concealment (PLC)

Dynamic Adaptive Jitter Buffer up to 300ms

DTMF: In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO Networking

Physical: 10/100 ou x3SG 1000 Mbps Ethernet, dual bridged port for PC bypass

IP Configuration: Static / DHCP / PPPoE

Network Access Control: 802.1x

VPN: L2TP (Basic Unencrypted) / OpenVPN

VLAN

QoS

Protocols

SIP2.0 over UDP/TCP/TLS

RTP/RTCP/SRTP

STUN

DHCP

PPPoE

802.1x

L2TP (Basic Unencrypted)

OpenVPN

SNTP

FTP/TFTP

HTTP/HTTPS

TR069

RFCs:

354/1321/1350/1769/1889/1890/2131/2132/2616/ 2617/2661/2833/2976/3261/3262/3263/3264/3265/ 3268/3311/3489/3711/4346/4566/5630/5865

Deployment & Maintenance

Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR069

Web Management Portal

Web-based Packet Dump

Configuration Backup/Restore

Auto/Manual Online Software Upgrade

Syslog

Physical Specifications

LCD x1: 128x48 dot-matrix with backlit

Keypad: 25 keys, including

4 Soft-keys

12 Standard Phone Digits keys

2 Navigation keys (Up/Down)

2 Line keys with tri-color LED

1 Redial / Call Log Key

3 Volume Control keys, Up/Down/Mute(Microphone)

1 Hands-free / Headphone key

HD Hands-free Speaker (0 ~ 7KHz) x1

HD Hands-free Microphone (0 ~ 7KHz) x1

HD Handset (RJ9) x1

Standard RJ9 Handset Wire x1

1.5M CAT5 Ethernet Cable x1

RJ9 Phone Jacket x2: Handset x1, Headphone x1

RJ45 Ethernet Jacket x2: Network x1 (802.3AF POE Class 1 Enabled, X3P only), PC x1 (Bridged to Network)

Main Chipset: Broadcom

DC Power Input: 5V/1A

Power Consumption: Idle – ~ 1.1W, Peak – ~ 1.8W

Working Temperature: 0 ~ 40℃

Working Humidity: 10 ~ 65%

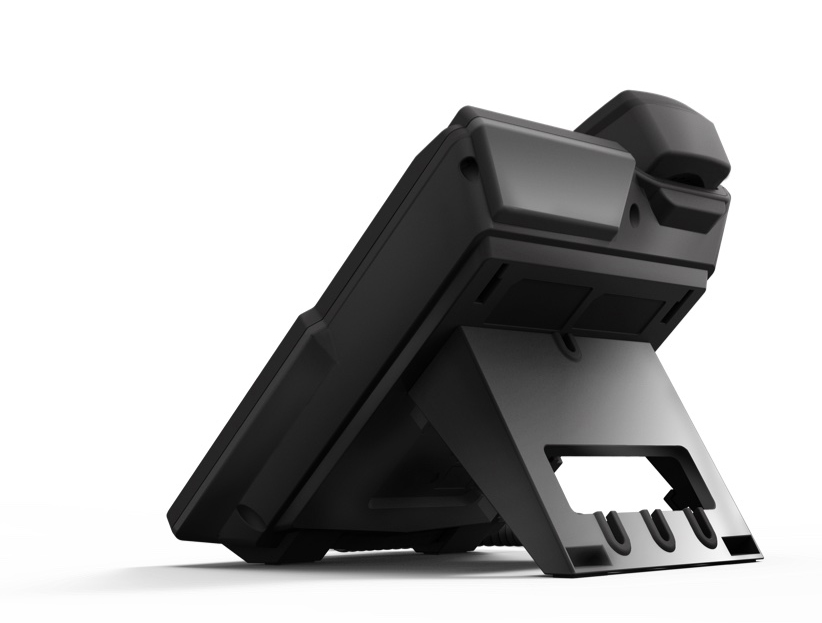

Dual-Functional Back Rack x1: Desktop Stand / Wall-mount

Color: Black (K) / White (W) / Red (R) / Blue (B) / Yellow (Y)

Package Dimensions: 275x215x62mm(W x H x L)

Nombre de Ports	2
PoE	Oui
Protocole	SIP
BLF (DSS)	Non
Module d'extension	Oui
Interface Casque	RJ9
Ecran	Couleur
Ecran rétroéclairé	Oui
Répertoire n°	500
Support MWI	Oui
WIFI	NON
Bluetooth	NON
Provisioning Method	HTTP,WEB GUI
Garanti	1 ans
