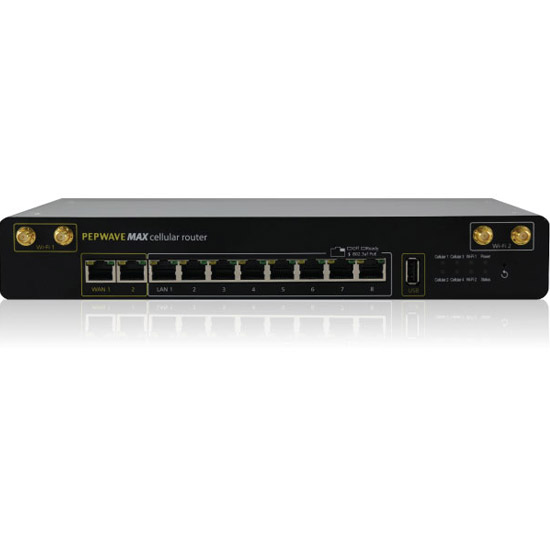

The MAX HD4 delivers outstanding performance from all your connections with the help of SpeedFusion bandwidth bonding and intelligent load balancing.

Quad Embedded Cellular Modems

Quad Cellular Modems and Redundant SIM slots allow you to use up to four different cellular providers for bandwidth bonding, data overage protection or eliminating blind spots.

SpeedFusion Bandwidth Bonding and Seamless Failover

SpeedFusion bandwidth bonding technology bonds all connected bandwidth into a single superfast stream, using the same or different cellular providers.

Certified Toughness

In addition to rugged metal enclosure, the MAX HD4 has certifications on:
Shock and vibration resistance (EN 61373:2010)
Railway Applications (EN 50155)
Electromagnetic Compatibility (EN 61000)

Fleet Tracking and Management

With built-in GPS fleet tracking and InControl 2 cloud-based management, you can keep tabs on location and manage your mobile network from any Internet-connected device.

Customizable Captive Portal

Branding your captive portal is as easy as uploading your logo and terms & conditions. You can easily set bandwidth allowance and access duration per user or manage access using RADIUS server.

With Social Wi-Fi Hotspot support, you can also receive valuable demographic data from your users.

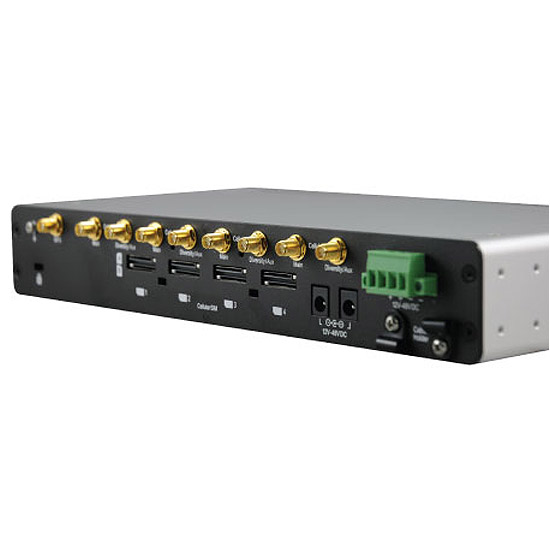

Terminal Block for Secure Power Supply

The MAX HD4 is equipped with a terminal block for secure installation in vehicles and other locations.

Built-in 8-Port GE Switch and Optional PoE Output

Cut down on cabling and simplify deployments. With a PoE activation kit purchase, the HD4 supports 802.3af PoE Output, so one cable is all you need for both connectivity and power.

Caractéristiques Techniques

Software

• Pepwave MAX Firmware

WAN

• Support for PPPoE, Static IP, DHCP
• WAN Link Health Check
• Bandwidth Allowance Monitor
• USB 3G/4G LTE Modem Support
• IPv6 Support
• Support for Dynamic DNS services

LAN

• DHCP Server for LAN Clients
• Extended DHCP Option
• DHCP Reservation
• DNS Proxy for LAN Clients
• VLAN on LAN Support

Load Balancing

• Intelligent Failover
• Session Persistence
• Per-Service Load Distribution
• Multiple Algorithms
• Weighted
• Enforced
• Persistence
• Priority
• Overflow
• Least Used
• Lowest Latency

Global Positioning System

• Integrated GPS
• Device Location Map
• Location Tracking Data
• GPS eXchange Format (GPX)
• Up to Seven Days
• Fleet Management with InControl 2

Complete VPN Solution

• PepVPN/SpeedFusion Hot Failover/SpeedFusion Bandwidth Bonding
• Site-to-Site VPN
• Bandwidth Bonding
• Hot Failover
• 256-bit AES Encryption
• Pre-shared Key Authentication
• Dynamic Routing
• X.509 Certificate Support
• PPTP VPN Server
• RADIUS, LDAP Authentication
• IPsec VPN (Network-to-Network) 5
• X.509 Certificate Support

Networking

• NAT and IP Forwarding
• Static Routes
• Port Forwarding
• Many to One, One to One NAT
• NAT Pool
• SIP ALG, H.323 ALG
• UPnP, NAT-PMP
• WINS Server
• VRRP HA support

Security

• Stateful Firewall
• DoS Prevention
• Web Blocking

Advanced QoS

• User Groups
• Bandwidth Reservation
• Individual Bandwidth Limit
• Application Prioritization
• By User Groups
• SIP, HTTPS, VPN QoS
• Custom Application QoS

AP Controller

• AP Controller Support
• Wi-Fi Usage Statistics
Captive Portal Support
• Support for Wired and Wireless LAN Clients
• Support RADIUS Authentication
• Time and Usage Quotas on Open Access Mode
• Built-in Customizable Splash Page

Device Management

• Web Administrative Interface
• Command Line Interface
• InControl Cloud Management
• Email Notification
• Active Client and Session Lists
• Bandwidth Usage Statistics
• Syslog Service
• SNMP v1, v2c and v3

Package Content

• MAX HD4
• 12V4A Power Supply
• 4x Dual Band Wi-Fi Antennas
• 1x GPS Active Antenna
• 8x 2dBi 4G LTE Antennas
• 1 Pair of Mounting Brackets
