FICHE TECHNIQUE:

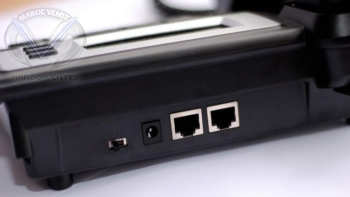

Interface:

Power Input: 100-240VAC
Output Power,5VDC,1A.
WAN RJ45，10/100M port.
LAN RJ45，10/100M port.

Features:

SIP 2.0 (RFC3261) and correlative RFCs
Codec: G.711 A/U Law, G.722, G.723, G.729,
Echo cancellation: Support G.168, and Hands-free can support 96ms, Hand free
Speaker Phone
Support Voice Gain Setting, VAD, CNG
Full duplex hands-free speaker phone
NAT transverse：support STUN client
SIP support SIP domain, SIP authentication (none, basic, MD5), DNS name of server,
Peer to Peer/ IP call
SIP support 2 SIP lines. Can connect to SIP1 and SIP2 server at the same time
DTMF：Support SIP info, DTMF Relay, RFC2833
SIP application: support Call forward/ transfer/holding/ waiting / 3 way talking/ paging
and intercom/pickup/join call/click to dial/call park
Call control features: Flexible dial map, Hot line,empty calling reject, Black list for reject
authenticated call, limit call, No disturb, Caller ID
Support Phonebook 500 records
Incoming calls / Outgoing calls / Missing calls. Each support 100 records
Support conference and voice record on SIP server
 10 kind of ring type
 Support SRTP

Network Features:

WAN/LAN: Support Bridge and Router model
Support basic NAT and NAPT
Support PPPoE for xDSL
Support DHCP Client on WAN
Support VLAN (optional: voice vlan/data vlan)
QoS with DiffServ
Support DMZ
Support main DNS and secondary DNS server
Support DNS Relay, SNTP Client, Firewall
Network tools in telnet server: Including ping, trace route,
 telnet client

Maintenance and Management:

Web ,telnet and keypad management
Management with different account right
Upgrade firmware through POST mode
Upgrade firmware through HTTP, FTP or TFTP.
Telnet remote management/Upload/download setting file
Safe mode provide reliability
Supoort Auto Provisioning (upgrade firmware or
configuration file)
 Support Syslog

Hardware:

CPU: Broadcom BCM1190 275MHz
SDRAM: 128Mbits
Flash: 16Mbits
LCD: 74*28mm
 Power Consumption 1.5W/Active：1.8W

Operating requirement:

Operation temperature: 0C to 40C (32 to 104F)
Humidity: 10 to 90% no dew

Packing Size:

Inner box MEAS 295×205×75mm
G.W./unit 1.0kg
