Description

Model

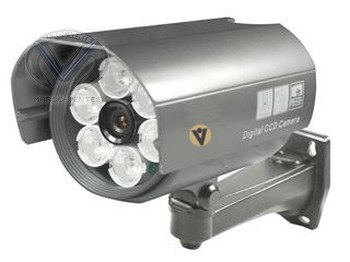

KD-RH6439S

Image Sensor

NEW 1/3" Super HAD CCD

System

PAL or NTSC

Scanning System

NTSC: 525 lines 2:1 interlace,  PAL: 625 lines 2:1 interlace

Video output

1.0Vp-p(75omhs,Compsite)

Horizontal resolution

520TVL

S/N Ratio

More than 48dB

Minimum illumination

0.2Lux, 0 Lux at IR on

  Lens

12mm / 16mm (optional)

White Balance

Auto/Hold/Indoor/Outdoor

BLC/AGC/Flicker Control

ON/OFF

IR LED

6 Super Long Range IR LED's X φ 20 IR LED
850nm infrared LED1/60(1/50)~1/120000 sec

Sync system

2:1 interlace internal Sync. / Line Lock (24Vac)

IR Distance

50-6060meters (Subject to IR reflection conditions)

LED life

More than 10,000 Hours

Gamma Ratio

0.45

PowerConsumption(±10%)

IR on: 500mA, IR off: 150mA

Power source mode

DC12V, 1000mA

Operation Temp.

Operating: -20 ~ + 55 °C , Storage: -30 ~ + 80 °C , Humidity:0~95%RH

Dimensions

86(W) x 78(H) x 132(L)

Weight

1070g
