Description

MODEL

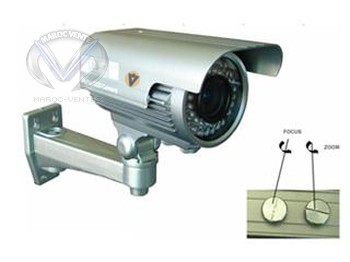

KD-FB4290E

Image Sensor

1/3" super HAD CCD

System

PAL / NTSC

Horizontal resolution

540TVL

Effective Pixels

PAL:752(H)x582(V)

NTSC:768(H)x494(V)

Minimum illumination

0.1Lux; 0Lux(IR ON)

Lens Mount

C / CS Mount

Video output

1.0Vp-p(75omhs,Compsite)

S/N Ratio

50dB(AGC off) MAX. 60dB

Lens

4-9mm

Day &Night

Auto /Day / Night

D/N Mode

Color / Day/Night Set up

White Balance

Auto/Hold/Indoor/Outdoor

Sharpness

Manual by OSD control

BLC/AGC/Flicker Control

ON/OFF

Electron shutter

1/50(60)～1/120;000S

Sync system

2:1 interlace internal Sync. / Line Lock (24Vac)

IR LED

42 PCS  Φ5  infrared LED

IR Distance

25～35  meters

Mirror

On / Off

Gamma Ratio

0.45

OSD Control

Underneath camera

Power source mode

12V DC

Working Temperature

－20°C ~ 50°C RH95%MAX

Dimensions

92(H)×192(L) mm

Weight

Approx 1200g
