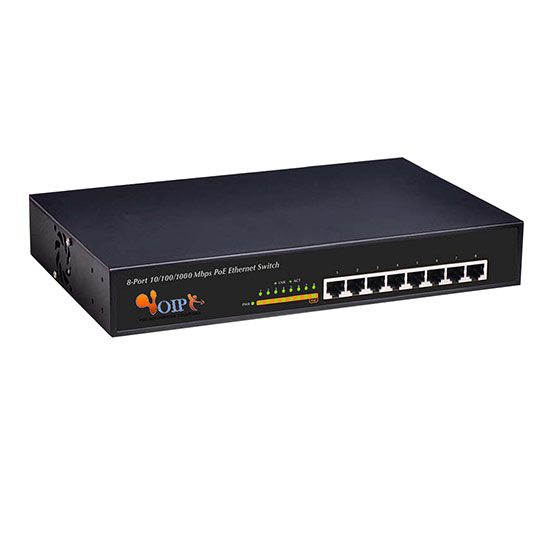

VoIP-Poe VM-S1008PEG - 8-port 10/100M/1000M unmanaged 8 Port support PoE Switch in Metal case(150W power)
Chargement... FICHE TECHNIQUE
Description du Produit
Features
8 × 10/100/1000Mbps Auto-negotiation Fast Ethernet RJ45 ports with 8 port PoE function (port1-port8)
Supports PoE power up to 28W for each PoE port
Supports PoE power up to 130W for all PoE ports
Supports PoE IEEE802.3af and IEEE802.3at compliant Powered Device (PD)
Supports IEEE802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
8K entry MAC address table of the FR-S1008PEG with auto-learning and auto-aging
LED indicators for monitoring power, link, activity
External power adapter supply
SPECIFICATIONS
VM-S1008PEG
Chipset
RTL8370
IIEEE 802.3 ; IEEE 802.3u ; IEEE 802.3x IEEE 802.3af ;IEEE 802.3at ; IEEE802.3ab
10BASE-T: UTP category 5 cable (maximum 100m) 100BASE-T: UTP category 5 cable (maximum 100m)
1000BASE-T: UTP category 5 cable (maximum 100m)
Number of Ports
8 x 10/100/1000Mbps Auto-Negotiation ports
16G
LED indicators
10/100/1000M
Link
POE
POE
Other
Power
Transfer Method
Store-and-Forward
PoE Power on RJ-45
Power+: ping3 & ping 6
Power-: ping 1 & ping 2
MAC Address Learning
Automatically learning, automatically Update
Frame Filtering and Forward Rate
10Mbps: 14880pps 100Mbps: 148800pps 1000Mbps: 1488000pps
Dimensions (L × W × H)
280*179*44.5mm
Environment
Operating Temperature: 0℃~50℃
Storage Temperature: -10℃~70℃
Operating Humidity: 10%~90% non-condensing
Storage humidity: 5%~90% non-condensing
