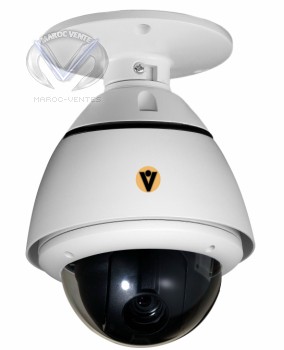

Visio KD-T12 - Speed Dome Camera's outdoor
Chargement... SPECIFICATION
Description | |
| Model | KD-T12 (outdoor) |
| CCD | 1/4" Interline Transfer CCD |
| Max. Pixels | 811(H)×508(V) 410K NTSC |
| Effective Pixels | 768(H)×494(V) 380K NTSC |
| Horizontal Res. | 500 TVL(Color),570 TVL(B/W) |
| S/N Ratio | 50dB(AGC Off) |
| Zoom | 10X optical zoom, 10X digital zoom |
| Focal Length | F1.8, f=3.8~38mm |
| Min. Illumination | 0.7Lux (Color), 0.02Lux (B/W), 50 IRE |
| Day & Night | Auto / Day / Night (ICR) |
| Focus | Auto / Manual / Semi-Auo |
| Iris | Auto / Manual |
| Shutter Speed | 128X~1/120000 sec |
| AGC | Normal / High / Off |
| White Balance | Auto / Manual / (Red, Blue Gain Adjustable) |
| BLC | Low / Middle / High / Off |
| Flickerless | Selectable |
| SSNR | Low / Middle / High / Off |
| Pan / Tilt Range | Pan: 360°(Endless), Tilt: 180°(Auto Flip),95°(Normal) |
| Pan / Tilt Speed | Preset: 360°/sec,Swing: 1~180°/sec Manual: 0.05~360°/sec(Proportional to zoom) |
| Preset | 127 Preset ( Lable, Camera Image Setting ) |
| Pattern | 4 Patterns, 1200 commands ( About 5 minutes)/Pattern |
| Swing | 8 Swing |
| Group | 8 Groups ( 20 actions entities per group ) |
| Other Functions | Auto flip, Auto parking, Power up action etc |
| Communication | RS-485 |
| Protocol | Pelco-D, Pelco-P selectable |
| Privacy Zone | 4 zones |
| Alarm Input | 4 Inputs |
| OSD | Menu / PTZ information etc |
| IP66 for outdoor use | Yes |
| Rated Power | MV-X10t-D: DC12V / 0.8A |
| Dimention | Dome: φ115, Housing: φ147.51×41(H)mm |
| Weight | About 1 Kg |
| Operating Temp | -20℃~+40℃ |
| Dimension | Please refer to the right figure |
