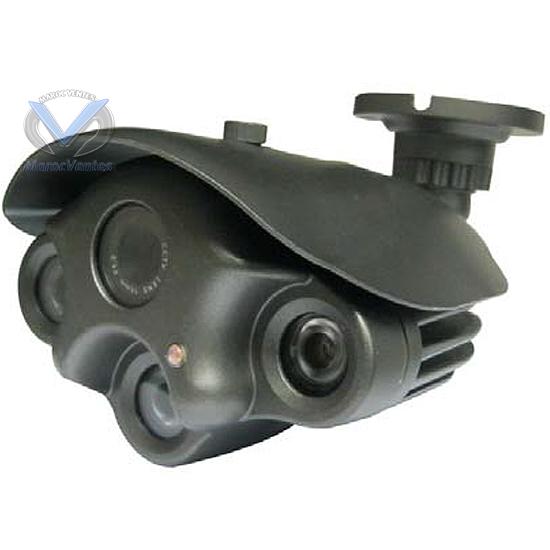

SecuEasy SE-CA168S - Caméra Color 1/3" SONY Effio EXview HAD CCD II,700 TV Lines, Low
Chargement... Description:
Features:
※Weatherproof IR camera
※IR LED:￠42X3pcs
※IR LED working distance:60-80m
※Water
resistance:IP66
※Lens:CS Lens
12/8/16mm/F2.0
※Auto Electronic Shutter (AES), Auto Gain Control(AGC),
Auto White Balance (AWB), Black Light Compensation (BLC), Mirror function
※ATR, DWDR,DNR,OSD menu optional
Specification:
|
Model |
SE-CA138S |
SE-CA338S |
SE-CA158S |
SE-CA168S |
|
Image Sensor |
1/3" SONY CCD |
1/3" HD Digital
Sensor |
1/3" SONY
ICX639BK CCD |
1/3" SONY CCD |
|
Resolution
(Horizontal) |
420TVL |
|
600TVL DWDR,DNR,OSD
menu(Optional) |
650TVL |
|
Effective Pixels |
PAL:500(H)×582(V); |
PAL:752(H)x582(V);NTSC:768(H)x494(V) |
||
|
LEDs |
￠42X3pcs |
|||
|
IR Distance |
60-80Meters |
|||
|
Min. Illumination |
0 Lux (Infrared Lamps Turn On) |
|||
|
Lens |
CS Lens 12/8/16mm/F2.0 |
|||
|
Signal System |
PAL/NTSC |
|||
|
Video Output |
1.0Vp-p@75Ω |
|||
|
S/N Ratio |
>48dB |
|||
|
Scanning System |
2:1 Interlace |
|||
|
Synchronization |
Internal |
|||
|
Gamma Characteristic |
>0.45 |
|||
|
IR Light Switch |
Auto |
|||
|
Backlight Compensation |
Auto |
|||
|
Gain Control |
Auto |
|||
|
White Balance |
Auto |
|||
|
Electronic Shutter |
1/50 ~ 1/100,000 sec（PAL）；1/60 ~ 1/100,000 sec（NTSC） |
|||
|
Power Supply |
12V DC/500mA |
|||
|
Waterproof Standard |
IP66 |
|||
|
Operating Temperature |
-20~+50℃ |
|||
|
Color |
Gray |
|||
|
Product Dimension |
225x175x95mm |
|||
