Teles iGate FCT - Passerelle 1 cannal GSM (GSM 900/1800 MHz) avec 1 interface FXS - antenne inclu

Chargement...

-49%

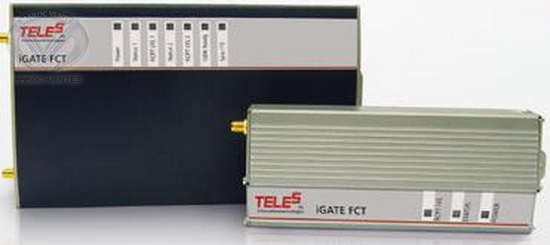

Passerelle 1 cannal GSM (GSM 900/1800 MHz) avec 1 interface FXS - antenne inclu iGate FCT

The iGATE FCT does what we say it does, does it well, and that saves your corporation money. Easy installation, no maintenance, and ongoing savings add up to speedy ROI and make the iGATE FCT gateway a must for your corporation.

Ce produit n'est plus proposé à la vente

Disponibilité : Obsolète (Fin de vie)

Evaluation :

Evaluer ce produit.

Description
Avis des clients

FICHE TECHNIQUE

CAPABILITIES
Scalability	1 mobile channel 1 SIM 1 FXS
Advanced	Network / Provider lock PIN code restriction Toll restriction
Echo cancellation	Configurable
Call features	Caller ID control (on outgoing calls only) Call hold, call waiting, call duration limitation Immediate dialing
PROTOCOLS
Mobile	GSM: Dual band (900/1800 800/1900 MHz)
Data port	RS232, AT command compatible
SYSTEM MANAGEMENT
DTMF management SMS management
PHYSICAL PARAMETERS
Size (W × H × D )	64 × 33.4 × 165 mm
Power supply	100–240 VAC, 50–60 Hz
Supply voltage	9 VDC, 1 A
Consumption	6 W
Connection specifications
Telephony	RJ11-C (pin2,3-TIP, pin4, 5-RING)
Antenna	SMA
Line loop current	40 mA max
Line supply voltage	-48 VDC ± 10 %
Line impedance	600 Ohm
Dial tone	400 Hz ± 1 %
Ring generator	42 Vrms/25 Hz
Line signaling	DTMF
Disconnect signal	Reverse polarity, Pulse drop
ENVIRONMENTAL CONDITIONS
Temperature	0 °C to +40 °C
CERTIFICATES
CE, Safety
