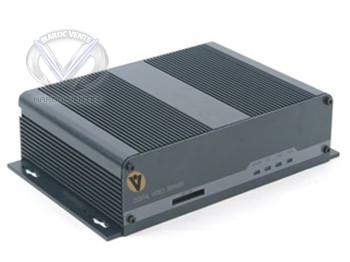

Visio KD-NVS801D - Network Video Server with 1ch D1 Video and 1CH Audio Input
Chargement...
SPECIFICATION
Description
BNC interface,1.0Vp-p,impedance 75Ohms NTSC:1-30 frames/second Built-in some high-speed protocols and decoding protocols. Support public protocols. Support CDMA, GPRS mobile network. Supports 802.11b/g wireless network.( NVS801WD/NVS802WD/NVS804WC)
Video Input
1 channel composite video, PAL or NTSC
Video Compression
H.264 Main Profile@ Level 3
Dual-Streaming
H.264/ MJPEG option
Video Definition
PAL: 352*288 (CIF), 704*288 (2CIF), 704*576 (D1);
NTSC: 352*240 (CIF), 704*240 (2CIF), 704*480 (D1)
VVideo Parameters
Brightness, Hue, Contrast, Saturation, Image quality.
Streaming Format
Optional Video Streaming or Audio &Video composite Streaming
Video Frame Rate
PAL: 1-25 frames/second
Video Compression Bit rate
16Kbit/S～16Mbit/S
Video Output
1 compound video, PAL or NTSC; BNC, level: 1.0Vp-p, impedance: 75Ω,
Audio Compression
G.726, G711, ADPCM
Audio Input
1 channel, RCA port, liner input, Impedance:1KOhms
Audio Output
1channel,RCA port, linear output
Audio talk-back input
1 channel ,MIC port
Overlaid Caption
Channel, Date, Bit rate. position adjustable
Communication Interface
1 10M/100M self-adapting Ethernet port, RS485 port, RS232 port
Storage interface
1Support SD card storage and snapshot, SD2.0 standard. (Max 32G SD card), Support FTP server.
Alarm Input
4 channel on/off input, supporting NO (normally open) or NC (normally close) sense.
Alarm Output
4 channel on/off output,120VAC 1A/24VDC 1A
Alarm Message
Sending alarm message by Email.
Input Power Supply
DC 12V,1A
Maximum Power
Less than 7W
Operating Temperature
-10 ~ +55℃
Operating Humidity
10 ~ 85%
Dimension
205mm(L) * 50mm(H)* 130mm(D)
