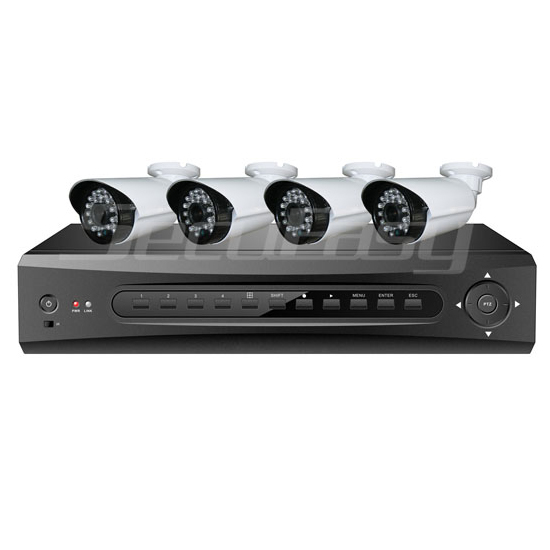

Model Number

SE-NR8104DP

 Image Code Control

Image code quality adjustable, variable bitstream and constant bitstream optional

 Dual Stream

Each channel can set main stream and sub stream

 Video Standard

1080P(1920×1080)30fps/960P/(1280×960)30fps/720P(1280×720)30fps

 Monitoring Image Quality

1080P(1920×1080) /960P/(1280×960)/720P(1280×720)

 Image Motion Detection

Each screen can set multiple detection areas and set 6-level  sensitivity（IPC Support）

Recording Playback Quality

Any 4ch 1080P/720P playback simultaneously

 Region Cover

Every channel can set 4 cover regions（IPC Support）

 Recording Mode

Support manual , auto, dynamic detection, alarm trigger  record mode(Partly needs IPC Support)

 Backup Way

Support U disk, USB mobile HDD, USB DVD-RW.network storage and backup

 Operation Way

Mouse

 Local Login

User name and password

 Recording Storage

Local HDD, network

External  Ports

Video Input

①1080P*2CH, 720P*2CH

②960P*4CH or 1080P*4CH or 720P*4CH

Audio Input

4ch network audio input

Video Output

1ch BNC+1ch VGA+1ch HDMI

Audio Output

1ch RCA auxiliary Output

Network Port

1 RJ45,10M/100M self-adaptive LAN port

USB Port

2 USB 2.0 ports

Wireless Port

3G，WIFI

 HDD

HDD Port

1 SATA HDD Port

MAX Capacity

 MAX 4TB HDD

Mobile Surveillance

Support( iPhone, Windows Mobile, BlackBerry, Symbian,  Android) smart phone

PoE

A

Power Supply

15V/4A

 Power Consumption

≤25W（without HDD）

 Working Temperature

-10℃～＋55℃

 Working Humidity

10％-90％

 Dimension

340mm*230mm*55mm

Model

SE-ND102QH

IR Led

￠5X24PCS

 IR Range

20M

Lens

 MTV Lens3.6mm/F1.4

Working Temperature

-20~+50℃

Size

170(L)*70(W)*65(H)mm

Compression

H.264

Max.image Resolution

1280×720

System Architecture

HI3518C, built-in (ARM9+DSP),high speed video coordinative processor

Image Sensor

1 megapixel, 1/4’’CMOS image sensor;switching optical filters, day/night covert, infrared sensitive, photo resistor signal linkage

Min. Illumination

 color 1.0Lux@F1.2,B&W 0.1 Lux@F1.2

Video Process

H.264 codec, dual stream, AVI format record;0.1M-6Mbps bit rate (adjustable)

Frame Rate

1 megapixel 25fps(full real time), support 1-25 fps(adjustable)

Video Output

Main Stream:1280×720(video resolution); Sub Stream:640×360,480×270,320×180

PoE

A

Audio Interface

N/A

Audio Process

N/A

Network Interface

1*RJ45 Ethernet interface,10/100Mself-adaptation;

Protocol

RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP

Mobile phone

Iphone,  Android

USB Interface

N/A

TF Interface

N/A

Auto Iris Lens Type

N/A

Photo Resistor

1*photo resistor interface, input signal and image by photo resistor, IR-CUT,IR LED linkage;

LED

1*IR LED control interface, control enable and disable IR LED by algorithm;

PTZ Interface

N/A

Alarm Interface

N/A

Optional

Mobile Phone Surveillance

Business Function

configure by WEB, OSD(on screen display),real-time video transmission, motion detection

Others

Power consumption: 3 watts
