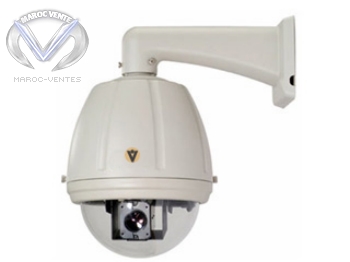

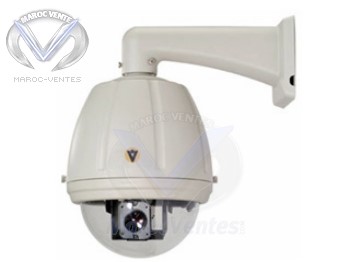

Visio KD-NVC300 - IP Speed Dome Camera H.264 Main RS485 axis visual control

Chargement...

-39%

H.264 Main Profile@Level 3/MJPEG optional realize transmission of High Definition video over low network bandwidth easily. Up to 30 frames per second in all resolutions ranging up to 720x480 Built-in Web server enables the use of a standard Web browser

Ce produit n'est plus proposé à la vente

Disponibilité : Obsolète (Fin de vie)

Evaluation :

Evaluer ce produit.

Description
Avis des clients

FICHE TECHNIQUE
Description du produit
Model	NVC300
Network Spec
Video compression	H.264 Main Profile @Level 3/MJPEG
Video Compression Bit rate	16Kbit/S～8Mbit/S
Supported Protocols	TCP, UDP, IP, HTTP, FTP, SMTP, DHCP, DNS,ARP, ICMP, POP3, NTP, IPsec, UPNP,RTP,RTCP
System Interface	10M/100M self-adapting Ethernet port, power supply cable.
System Interface	Support mobile surveillance
Speed Dome Spec
preset	64presets, can be labeled with editable title
Pan rotation range	360° Endless
Tilt range	Tilt 90°
Manual pan speed	6°/S, 9°/S, 12°/S, 15°/S
Manual vertical speed	6°/S, 9°/S, 12°/S, 15°/S
Communication	RS485 axis visual control
IP Grade	IP66
Baud rate (RS485)	2400/4800/9600/19200bps
Environmental
Operating Temp	5°C (heater)-＋50°C(Fan)
Operating Humidity	RH90%MAX
Electrical Spec
Power Supply	15V(2.4A)
Dome Motor	DC14V—15V(0.5A)
Camera lens motor	DC12V/100mA
Camera power supply	12V/1A
