SecuEasy I903/ D1103 - DVR 16CH 25F:S/BNC/VGA/CMS/GRAV SUPPORT DI-RD626B

Chargement...Chargement...
-39%

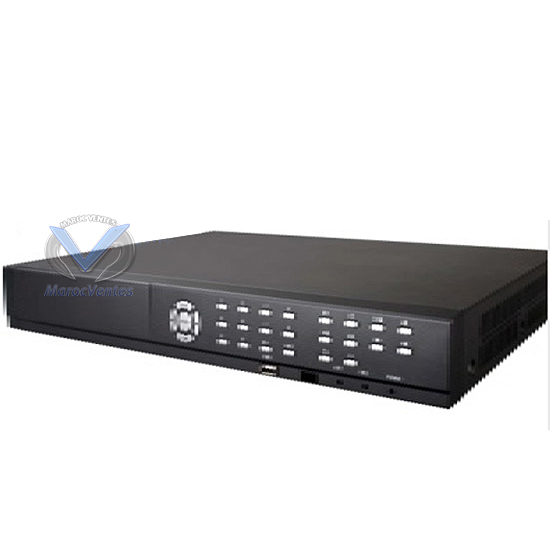

DVR 16CH 25F:S/BNC/VGA/CMS/GRAV SUPPORT DI-RD626B
DVR 16ch H.264 Compresstion 3G Mobile Phone surveillance and E-mail Alarm 1x SATA HDD(max up to 2TB), 2x USB, 1x RS485, Multilanguages,Multiprotocols : TCP/IP,UDP,DHCP,DNS,PPPoE,DDNS.

Ce produit n'est plus proposé à la vente
Disponibilité : Obsolète (Fin de vie)
Evaluation :
  • DVR 16CH 25F:S/BNC/VGA/CMS/GRAV SUPPORT DI-RD626B

Fiche Technique:

 Model

SE-RD626S

System

Main Processor

High performance embedded microprocessor

Operating System

Embedded LINUX

Control Mode

Front panel, USB mouse, IR remote control

Video

Input

16 CH BNC

Output

1 CH BNC & 1 CH VGA

Audio

Input

4 CH RCA

Output

1 channel

Display

Display Split

1/4/8/16

Live Resolution

D1 (PAL:704*576  NTSC:704*480)

Recording

Video/Audio Compression

H.264 / G.722

Recording Priority

Manual >Alarm >MD motion detect>Schedule

Video Detection&Alarm

Trigger Events

MD(motion detection), Sensor triggered,
Video loss, HDD error and full

Motion Detection

Zones: 396(22×18) sensitivity adjustable

Alarm Input

4 CH

Relay Output

2 CH

Playback&Backup

Playback

4ch D1 playback resolution

8ch/16ch CIF Playback Resolution

Search Mode

Time、Date、Event、Channel

Backup Mode

USB Device / Remote / Local HDD Backup

Network

Protocol

TCP/IP, UDP, DHCP, DNS, PPPOE, DDNS,

Remote Operation

IE control、CMS

Hard Disk

Hard Disk

2 SATA HDD up to 4TB

Auxiliary Interface

USB Interface

2 ports, 1 for mouse control, 1 for backup

RS485

1x  for PTZ control

Environmental

Power Supply

DC12 4A

Working Environment

-10℃~+50℃ / 10~90%RH / 86~106kpa

Dimension

375*295*55mm

Weight

2.45KG
