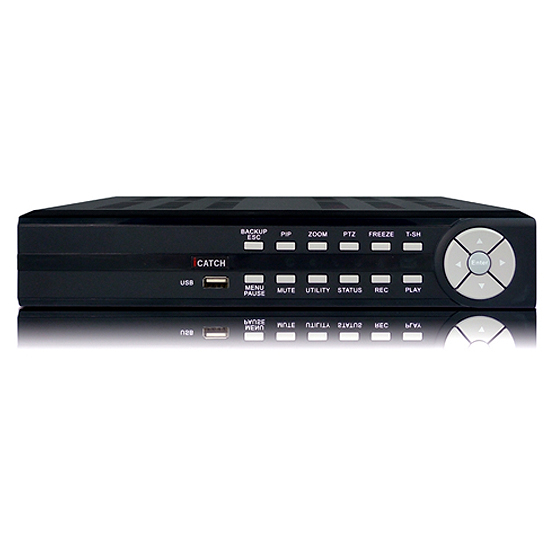

Model

411ZS-J

Camera Input

4CH

Video

HDMI

1 (Option)
(Video Output [1280x1024] + Audio Output)

Input

4

Output

2 BNC (1 BNC for Main monitor, 1 BNC for Co-monitor) , 1 VGA ( max. 1280X1024)

Audio

Input

4 RCA

Output

2 RCA

System

Operating System

Embedded Linux OS

SATA Devices

Supports 1 SATA Device (HDDx1)

External HDD

N/A

Sensor In (NO, NC)
Relay out

Sensor-in x 4
Relay-out x 1

Serial Interface

RS-485

USB

2 x USB2.0

Dimension ( mm )

W: 280(w)x51(h)x203(d)

Weight ( w/o HDD/DVD±RW )

1.00KG

Power Supply

Input 100~240V,
Output 12V 2A

Power Rating

24W

Display

Speed

120 fps

Resolution (Pixel)

720 X 480(NTSC), 720 X 576(PAL)

Split screen

1,4, SEQ.

Auto Channel Switching

Switching time : 1 ~ 999 sec

Mode

Zoom ( Digital x2~ x8 ), PIP, Auto SEQ.

Recording

Compression

H.264 Baseline

Dual Stream Resolution (Pixel)

Main
(Recording)

704 X 480, 704 X 240, 352 X 240 (NTSC) /
704 X 576, 704 X 288, 352 X 288 (PAL)

Sub
(Network)

352 x 240 (NTSC),
352 x 288 (PAL)

Picture quality

5 levels
(Highest, High, Normal, Basic, Below Basic)

Mode

Manual, Motion, Schedule

Speed

NTSC

D1 120 fps(704 x 480)
HD1 120 fps(704 x 240)
CIF 120 fps(352 x 240)

PAL

D1 100 fps(704 x 576)
HD1 100 fps(704 x 288)
CIF 100 fps(352 x 288)

Pre-Alarm

10 SEC

Post-Alarm

1 ~ 60 SEC

Playback

Display

1, 4

Search mode

Date, time, event, camera

Zoom

Digital ( x2 ~ x8 )

Snapshot

YES

Speed

Normal, REW & FF (recorded speed x2, x4, x8, x16, x32, x64), Frame to frame, Pause

Device

Int. HDD

Network

Network Interface

10/100 Ethernet

Protocol

TCP/IP, SMTP, HTTP, DHCP, PPPoE(ADSL), NTP

Application

Windows XP/VISTA/7(PC Client system)

Remote Software

Application Software, IE Browser

Account

1 Admin + 10 Users

CMS

Yes

Mobile

Symbian, Windows Mobile, Blackberry, iPhone, Android phone

Event Transport

E-mail, FTP

Backup

Interface

USB 2.0 or SATA

Audio Backup

YES

Network

YES

Backup Device
(Optional)

 Network Backup / USB Flash Drive / USB DVD±RW

Alarm

Motion Detection

Detected Frames: Channel

Sensitivity : 10 levels for each channel

Area : Programmable individually

Search (Event Criterion)

YES

Event Log

Up to the 10000 events
(Sensor, Motion, video Loss, power on, remote login, logout, HDD error,  HDD full)

OSD
&
DVR Control

GUI

16-bit True Color

Multi-Language

English, Traditional Chinese, Others

Camera Title

Multi-Language

USB Mouse

YES

Touch Panel

Touch Panel LCD Monitor (USB Interface, EETI Chipset Only)

Remote Controller

IR Remote Control
( Max. 1 Device)

System Upgrade

via USB / Network

Hard Key

Front Panel

Pan / Tilt / Zoom Control

Control From RS-485 Interface
( Pelco P, Pelco D, Samsung, LG, LiLin )
