Dialogic 887-533 - Carte Vocali bus D/300JCT-E1-120EW - PCIexpress avec Interface telefonique

Chargement...

-35%

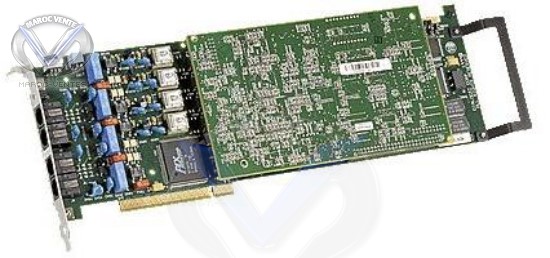

Carte Vocali bus D/300JCT-E1-120EW - PCIexpress avec Interface telefonique 887-533

The D/300JCT-1E1 media boards are ideal for developers seeking to provide cost-effective, scalable, high-density communications applications requiring digital network interfaces as well as multimedia resources such as voice and, in certain environment

Ce produit n'est plus proposé à la vente

Disponibilité : Obsolète (Fin de vie)

Evaluation :

Evaluer ce produit.

Description
Avis des clients

FICHE TECHNIQUE

General
Device Type	Voice/fax board
Enclosure Type	Plug-in card
Approximate Width	0.8 in
Approximate Depth	12.3 in
Approximate Height	3.9 in
Modem
Interface Type	PCI Express x1
PCI Revision	PCIe 1.0a
Connectivity Technology	Wired
Processor	Intel 80486GX
Max Transfer Rate	2.048 Mbps
ISDN Interface	ISDN PRI E1
Protocols & Specifications	ITU V.17, ITU T.30, ITU T.4
Data Compression Protocol	G.726, MH, MR
Fax Compatibility	G3
Multiplexed Channels Qty	30
Line Rate	E-1
Line Coding Format	HDB3
Framing Format	G.704, G.703, G.711, CRC4
Features	Auto call detection, DTMF decoding
Expansion / Connectivity
Expansion Slots Total (Free)	1 ( 1 ) x CT Bus
Interfaces	1 x network - ISDN PRI E1 - RJ-48C
Compatible Slots	1 x PCI Express x1
Miscellaneous
MTBF	150,000 hour(s)
Compliant Standards	CSA, VCCI Class A ITE, ICES-003 Class A, RoHS, UL 60950-1, FCC Part 15 A
Software / System Requirements
OS Required	Linux, Microsoft Windows
Environmental Parameters
Min Operating Temperature	32 °F
Max Operating Temperature	122 °F
Humidity Range Operating	8 - 80%
