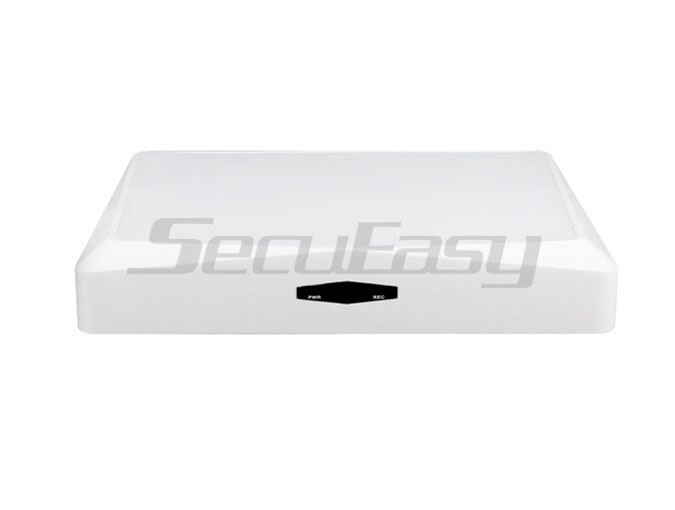

SecuEasy RD714AN - 4CH 1080N/960P/720P

Model No.

SE-RD714AN

system

operating system

embedded linux

system resources

Simultaneous multi-channel real-time recording, playback, network operation， USB backup

interface

user interface

support 16-bit true color graphical menu interface and mouse operation

Video

vdieo compression

H.264

display quality

VGA、HDMI：1920*1080

playback quality

1080N/960P/720P/D1

Multi-mode Input

Analog: 4*1080P/960P/720P(AHD)；Hybrid: 2*720P AHD+2*720P(IP); IPC: 8*1080P

motion detect

Zones: 192（16*12）detection zones,sensitivity: multi-level sensitivity (Only local channels)

Record&playback

record mode

manual>alarm>motion detection>timing

local playback

4ch Playback:4*1080N@25fps

search mode

Time/calendar/event/channel search

Storage&backup

HDD space for each channel

720P 20G/day；960P 12~20G/day*CH； Audio：691.2M/day*CH

record storage

HDD、network

backup mode

Network backup、USB、SATA

interface

video input

4ch BNC（1.0Vp-p,75Ω75Ω)

video output

1ch VGA，1ch HDMI

audio input

4ch RCA(200-2800mV,30KΩ)

audio output

1ch RCA(200-3000mV,5KΩ)

net interface

RJ45 10M/100M

PTZ control

One RS485 port, support multiple PTZ protocols

usb

2  USB2.0 ports（save two front interface）

hard disk

1  SATA ports（4T at most per one）

others

Power supply

12V/2.5A

Working Temperature

0℃-＋55℃

Working Humidity

10%－90%

Atmospheric pressure

86kpa－106kpa

dimension

225*192*43mm

weight

0.8kg
