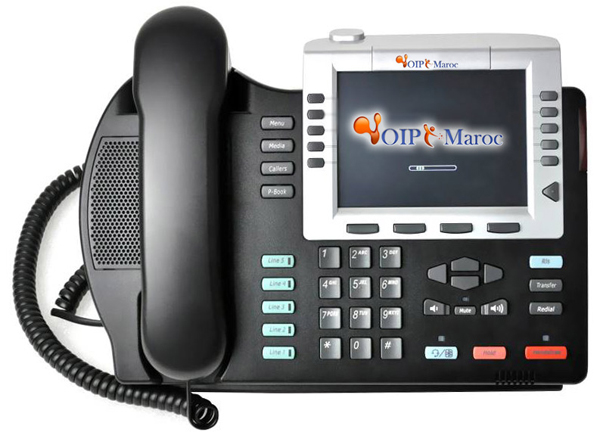

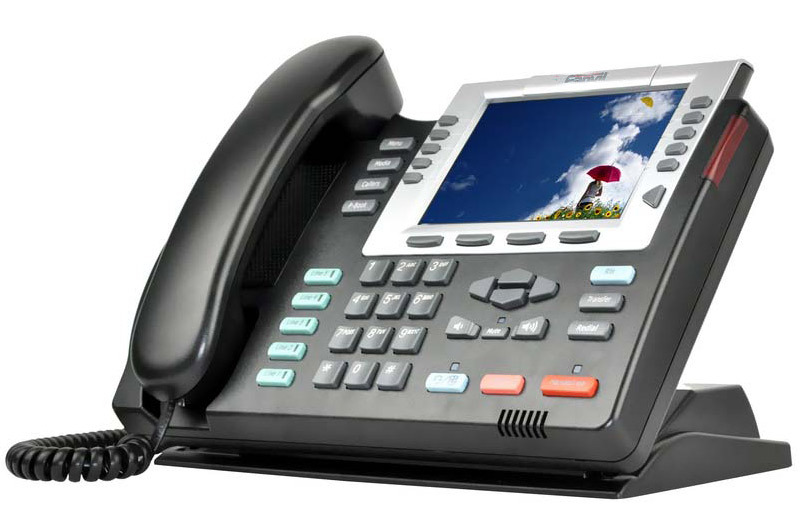

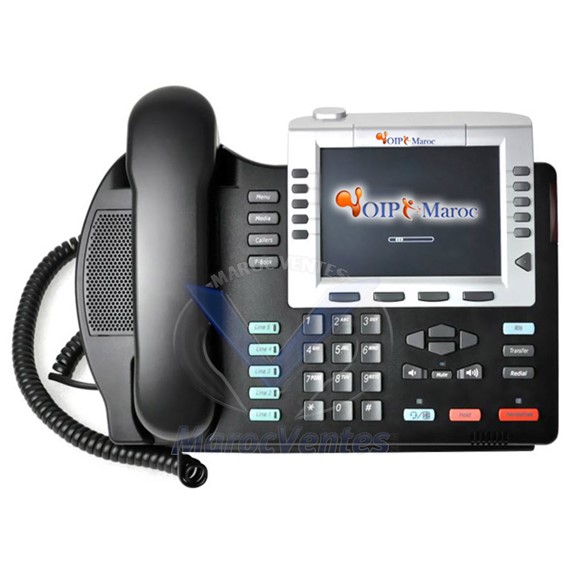

Fanvil SE500 - Telephone couleur tactile avec 5 compte SIP. USB Wifi navigateur Web

Fiche Technique

Basic Features

SE500 Téléphone couleur tactile avec 5 compte SIP. USB Wifi navigateur Web

Support SIP 2.0 (RFC3261) and correlative RFCs

Support IAX2 (Optional)

SIP supports 5 SIP servers. Can connect to these SIP servers at the same time.

Codec：G.711A/u, G.7231 high/low, G.729a/b, G.722,G.726，iLBC，AMR-NB，AMR-WB

Echo cancellation: G.168 Compliance in LEC, additional acoustic echo cancellation(AEC) can reach 96ms max filter length in hands-free mode

Support Voice Gain Setting, VAD, CNG

Support jitter buffer

Full duplex hands-free speakerphone

SIP support SIP domain, SIP authentication (none, basic, MD5), DNS name of server, Peer to Peer/ IP call

DTMF Relay：support inband, SIP info, RFC2833

Support customized music rings

Support STUN

Support SMS based on SIP

Volume(handfree/handset/headset/ring) adjustment

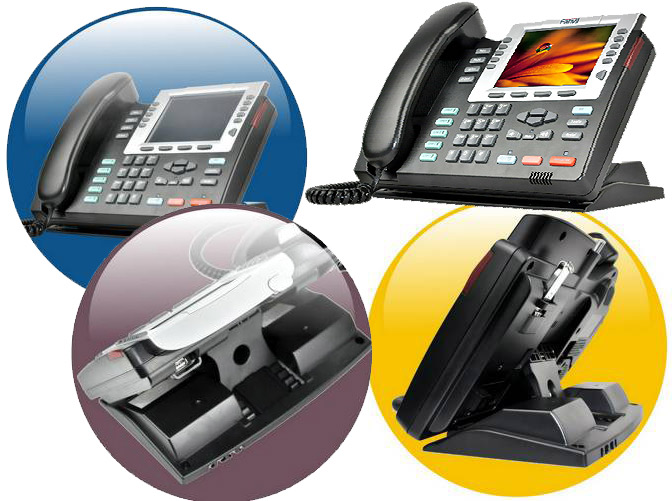

Visual angle adjustable display screen

Professional Speaker/HD Voice

Ergonomic handset(acoustical cochlea)

Application Features

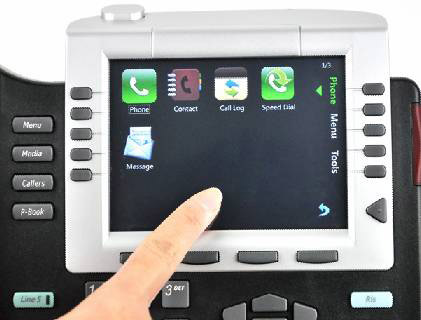

Touched, Large dot matrix LCD display and softkeys make user easier to use

Friendly graphic menu

Multilanguage realizes localization

SIP application: support forward/transfer (blind/attended/alert)/ holding/ waiting/ 3 ways conference/ paging and intercom/ call park/ pickup/ join call/ redial and unredial/ click to dial//secondary dialing automatically

Call control features: flexible dial map, hotline, empty calling no. reject service, black list for reject authenticated call, white list, limit call, do no disturb, auto answer, caller ID, CLIR (reject the anonymous call), CLIP (make a call with anonymous), Dial without register

Predial

Voice recording during talking/auto answer/local

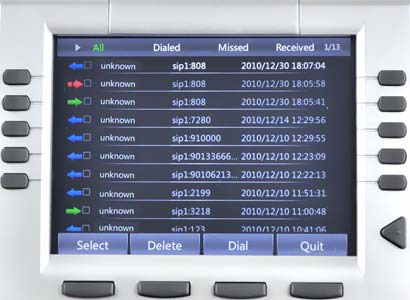

Incoming calls /outgoing calls / missing calls. Each support 100 records.

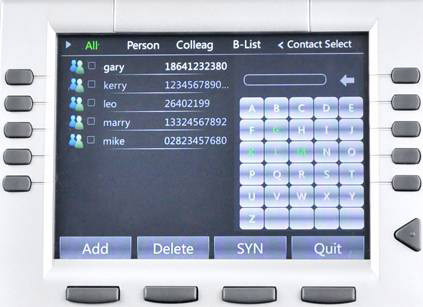

Support Phonebook 1000 records

Phone book records export/import

XMLphone book

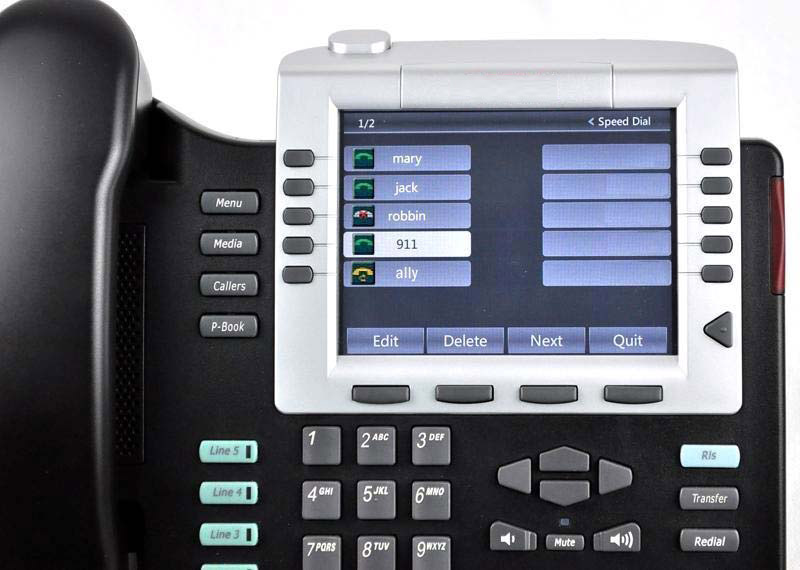

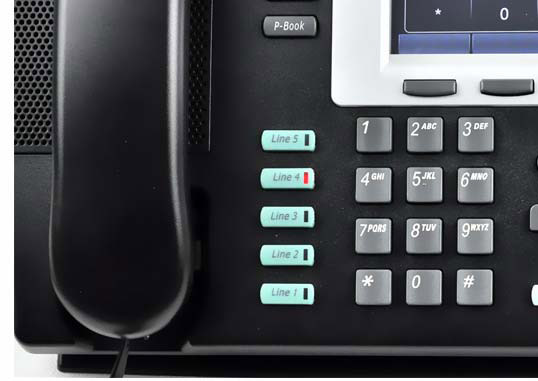

10 Speed dial hard keys，expand to 20 vritual speed dial numbers

Photo frame

Media player(mp3)

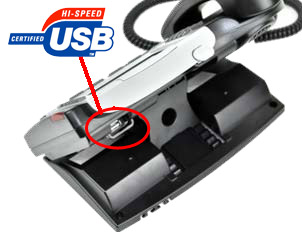

Usb disk file read/write

System files management

Support VoIP(SIP/RTP) encryption (e.g. RC4)

Network Features

WAN/LAN: support switch mode

Support PPPoE for xDSL

Support PoE（802.3af）

Support DHCP Client on WAN

Support main DNS and secondary DNS server

Support VLAN (Optional)

Support NTP Client

Support VPN L2TP , Open VPN/TLS, SRTP, HTTPS(Optional)

Support QoS with DiffServ(Optional)

Support MD5 authentication

Network tools in telnet server: including ping, trace route, telnet client

Management

Linux 2.6 OS

Web ,telnet and keypad management

Management with different account right

Support automatic upgrades/configuration deployment

Support encrypted configuration files download with AES

Support pushing message
