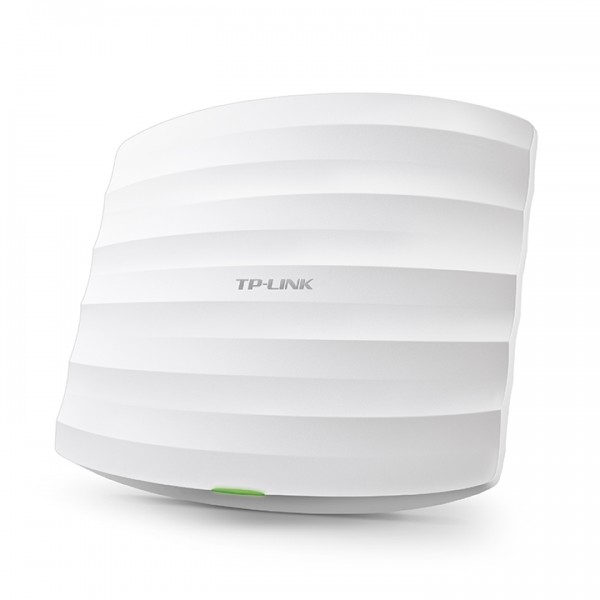

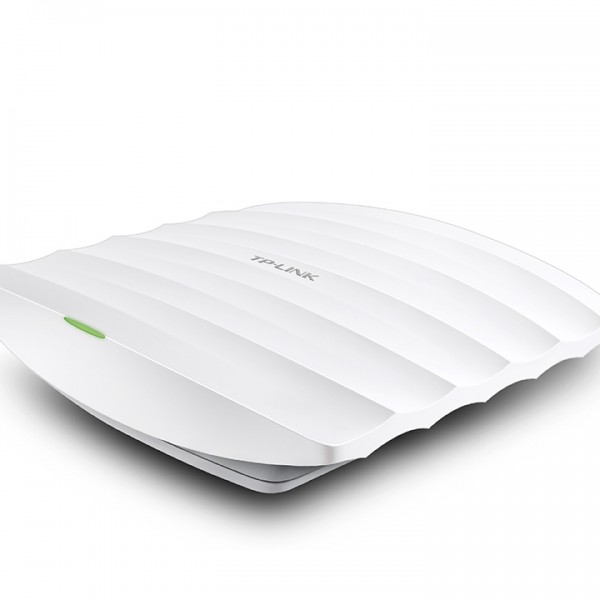

TP-LINK EAP320 - POINT D’ACCÈS WI-FI DOUBLE BANDE AC1200 POE GIGABIT PLAFONNIER

SPÉCIFICATIONS MATÉRIELLES
 Interface Gigabit Ethernet (RJ-45) Port *1（Support IEEE802.3at PoE）
 Console Port *1
 Bouton Reset
 Alimentation PoE or External 12VDC / 1.5A Power Supply
 Consommation 13 W
 Dimensions (LxPxH) 8.7 x 7.6 x 1.4 in. (220.5*193.5*36.5mm)
 Type d’antenne Internal Omni
 2.4GHz: 2* 6dBi
 5GHz: 2*7dBi
 Montage Ceiling /Wall Mounting (Kits included)
 Système de verrou physique Kensington Lock Slot
 Watch Dog Yes

 CARACTÉRISTIQUES WI-FI
 Standards Wi-Fi IEEE 802.11ac/n/g/b/a
 Fréquence 2.4GHz and 5GHz
 Vitesse du signal 5GHz:Up to 867Mbps
 2.4GHz:Up to 300Mbps
 Puissance de transmission CE：
 <20dBm(2.4GHz)
 <23dBm(5GHz)
 FCC:
 <27dBm
 Fonctions Wi-Fi Multiple SSIDs （Up to 16 SSIDs, 8 for each band）
 Enable/Disable Wireless Radio
 Automatic Channel Assignment
 Transmit Power Control （Adjust Transmit Power on dBm）
 QoS(WMM)
 Airtime Fairness
 Beamforming
 Band Steering
 Load Balance
 Rate Limit
 Reboot Schedule
 Wireless Schedule
 Wireless Statistics based on SSID/AP/Client
 Sécurité Wi-Fi Captive Portal Authentication
 Access Control
 Wireless Mac Address Filtering
 Wireless Isolation Between Clients
 SSID to VLAN Mapping
 Rogue AP Detection
 802.1X Support
 64/128/152-bit WEP / WPA / WPA2-Enterprise,
 WPA-PSK / WPA2-PSK

 ADMINISTRATION
 Logiciel contrôleur EAP Yes
 Alertes Email Yes
 DEL ON/OFF Yes
 Administration de contrôle d’accès des adresses MAC Yes
 SNMP v1,v2c
 Journal système local/distant Local/Remote Syslog
 Telnet Yes
 Administration par interface WEB HTTP/HTTPS
 Interface de ligne de commande CLI Yes
 L3 Management Yes
 Multi-site Management Yes

 AUTRES
 Certification CE, FCC, RoHS
 Contenu de l’emballage AC1200 Wireless Dual Band Gigabit Access Point EAP320
 Power Adapter
 Mounting Kits
 Resource CD
 Installation Guide
 Système requis Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
 Environnement Operating Temperature: 0℃~40℃ (32℉~104℉)
 Storage Temperature: -40℃~70℃ (-40℉~158℉)
 Operating Humidity: 10%~90% non-condensing
 Storage Humidity: 5%~90% non-condensing
