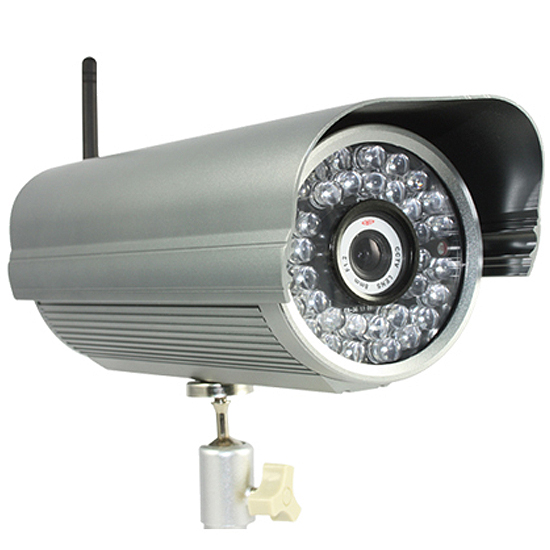

oem YK-PB621 - Camera IP 1/4"HD CMOS sensor

Image sensor

1/4"HD CMOS sensor

Total pixels

1.3 mega pixels

Min illumination

IR LED on,0 Lux

Lens

IR Lens,f=8mm，F=1.2

Horizontal

N/A

Vertical

N/A

Preset position

N/A

Illumination

36pcs IR LED, 8m distance

IR LED control

control automatically by photoresistor，also power off IR LED manually

IRCUT

Yes

Resolution

1280*720/640*360/320*180

Video compression

H.264/MJPEG

Max FPS

30FPS

Bitrate

32kbps ~ 4.096Mbps

Picture rotation

Mirror/flip

OSD

support

Audio compression

G.711/G.726

Basic protocol

TCP/IP、UDP/IP、HTTP、SMTP、FTP、DHCP、DDNS、UPNP、NTP、802.11b/g/n

Other protocol

RTSP、ONVIF、WPS、P2P

Ethernet

Support RJ45

Storage

TF slot

Alarm in

N/A

Alarm out

N/A

Audio in

N/A

Audio out

N/A

WIFI antenna

support

Status LED

support

Motion detection

Support 4 selectable detection area

Alarm action

Email/FTP/SD card storage/external alarm

Intercom

support

Storage

Max 32G TF/SD card storage

User setting

Three levels

Date/time setting

Support for multiple time setting mode

Upgrade

Upgrade from network

DDNS

A free DDNS have been written in device; also support several third party DDNS

Weight

1.056kg

Dimension(L*W*H)

208*95*100mm

Power supply

12V

Power consumption

<10W

Work temperature

－10°~＋50°

Work humidity

10% ~ 80% non condensation

Browser

Internet Explorer 6.0 and above,Firefox,Chrome,Safari etc

PC client software

IPCMonitor.exe

Phone client software

iSmartView
