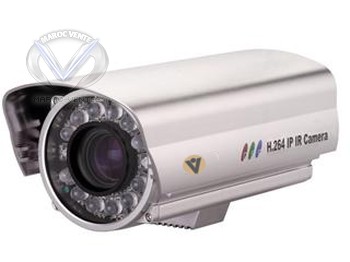

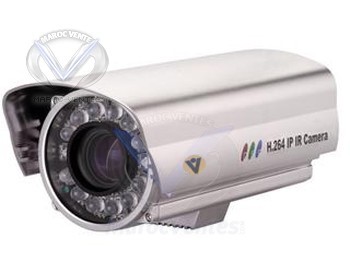

Visio KD-NVC03D-23X - Waterproof Camera 540 TVL Port RS232
Chargement... Avis
FICHE TECHNIQUE
Description du produit | ||
| KD-NVC03D-23X | 540 TVL(Day)/570TVL(Night), 0.5LUX/0.01Lux，day/night ,1/4 Exview CCD | |
| Zoom Ration | 23X(optical)*10X(digital), f3.84~88.4mm lens | |
| SSNR | Low/Middle/high/Off selectable | |
| Day/Night | Auto/ IR cut auto transfer | |
| IR LED Distance | 80m (Zoom lens Ratio) (IR on) | |
| Video compression | H.264 Main Profile@Level 3/MJPEG optional | |
| Video Definition | CCD | PAL:352*288(CIF),704*288(2CIF),704*576(D1);
NTSC:352*240(CIF),704*240(2CIF),704*480(D1) |
| Video Frame Rate | CCD | PAL: 1-25frames/second
NTSC:1-30frames/second |
| Video Compression Bitrate | 16Kbit/S～8Mbit/S | |
| Supported Protocols | TCP, UDP, IP, HTTP, FTP, SMTP, DHCP, DNS,ARP, ICMP, POP3, NTP, IPsec, UPNP,RTP,RTCP | |
| System Interface | RS232 port (convert to 10M/100M self-adapting Ethernet port, and power supply, Alarm port) | |
| 1 RS485 port (supports transparent protocols) | ||
| Support built-in SD card (Maximum 32GB) | ||
| Support mobile suveillance | ||
| Audio Input | 1channel,linear input | |
| Audio Compression | G.726 | |
| Audio Output | 1channel,RCA interface, linear output | |
| Alarm Input | 1 channel on/off input, supporting NO(normally open) or NC(normally close) sense. | |
| Alarm Output | 1 channel on/off output,120VAC 1A/24VDC 1A | |
| IP Grade | IP66 | |
| Input Power Supply | DC 12V,2A | |
| Operating Temperature | -20°C+ 60°C | |
| Operating Humidity | RH90%MAX | |
| Maximum Power | Less than 8W (IR on) | |
| Dimension | 26.6cm(L)*12.4cm(W)*11.5cm(H) | |
| Net weight | 2.58kg | |
