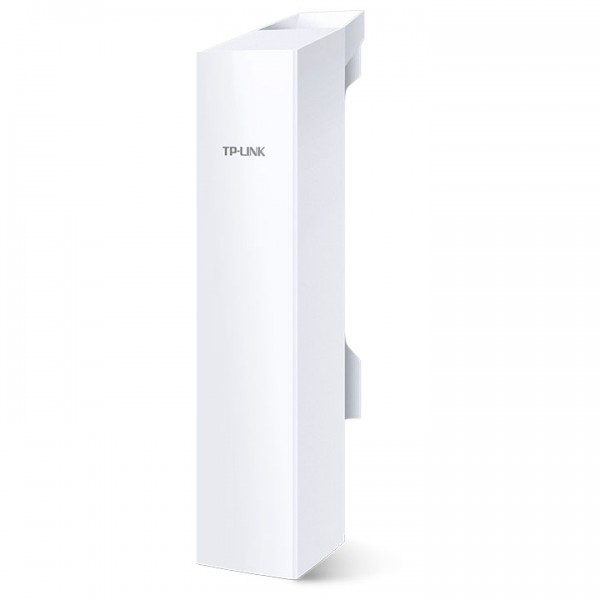

TP-LINK CPE220 - 2.4GHz 300Mbps 12dBi Outdoor CPE

HARDWARE FEATURES
PROCESSOR Qualcomm Atheros 560MHz CPU, MIPS 74Kc
MEMORY 64MB DDR2 RAM, 8MB Flash
INTERFACE 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)
1 10/100Mbps Shielded Ethernet Port (LAN1, Passive PoE Passthrough)
1 Grounding Terminal
1 Reset Button
POWER SUPPLY Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
Voltage range: 16-27VDC
POWER CONSUMPTION 10.8 Watts Max
Note: When deployed using Passive PoE, the power drawn from the power source will
be higher by some amount depending on the length of the connecting cable.
DIMENSIONS ( W X D X H ) 11×3.1×2.1 inch (276×79×60 mm)
ANTENNA TYPE Built-in 12dBi 2×2 Dual-polarized Directional Antenna
Beam Width: 60° (H-Plane) / 30° (E-Plane)
Note: For more details, please refer to datasheet
PROTECTION 15KV ESD Protection
6KV Lightning Protection
ENCLOSURE Outdoor ASA stabilized plastic material
IPX5 waterproof Certification

WIRELESS FEATURES
WIRELESS STANDARDS IEEE 802.11b/g/n (with Pharos MAXtream disabled)
PROPRIETARY PROTOCOL TDMA Mode (with Pharos MAXtream enabled)
WIRELESS SPEEDS Up to 300Mbps (40MHz,Dynamic)
Up to 144.4Mbps (20MHz,Dynamic)
Up to 72.2Mbps (10MHz,Dynamic)
Up to 36.1Mbps (5MHz,Dynamic)
FREQUENCY 2.4~2.483GHz
Note: Available operating frequency may vary depending on the limitations
of the countries or regions in which the device is used.
TRANSMISSION POWER 30dBm/1000mw (Adjustable power by 1dBm)
Note: Maximum transmission power may vary across different channels depending
on the limitations of the countries or regions in which the device is used.

SOFTWARE FEATURES
WIRELESS CONFIGURATIONS Pharos MAXtream TDMA Technology
802.11b/g/n Modes
Selectable Channel Width: 5/10/20/40MHz
Automatic Channel Selection
Transmission Power Control
Dynamic Frequency Selection (DFS)
WDS Enable/Disable
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
SSID Broadcast Enable/Disable
Multi-SSID with VLAN Tagging (AP mode only)
Distance/ACK Timeout Setting
Wireless MAC Address Filter
Wireless Advanced:
> Beacon Interval/RTS Threshold/Fragmentation
>Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
MANAGEMENT Discovery and Remote Management via Pharos Control application
HTTP/HTTPS Web-based management
System Log
SNMP Agent(v2c)
Ping Watch Dog
Dynamic DDNS
SSH Server
SYSTEM TOOLS Wireless Signal Quality Indicators:
Signal Strength/Noise/Transmit CCQ/CPU/Memory
Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
Spectrum Analyzer
Speed Test
Ping
Traceroute
SYSTEM-LEVEL OPTIMIZATIONS Optimized IGMP Snooping/Proxy for multicast applications
Hardware watch dog

POE ADAPTER FEATURES
INTERFACES 1 AC Jack with Earth Ground
1 10/100Mbps/1000Mbps Shielded Ethernet Port (Power + Data)
1 10/100Mbps/1000Mbps Shielded Ethernet Port (Data)
EFFICIENCY >80%
BUTTON Remote Reset Button
CERTIFICATIONS CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
POWER STATUS LEDS 0~0.8A: Green
0.8A~1.0A: Red
OUTPUT 24VDC, 1.0A Max
+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
INPUT VOLTAGE 100VA~240VAC @ 50Hz~60Hz
DIMENSIONS(W X D X H) 110×57×33.5mm
INPUT CURRENT 0.8A Max @ 100VAC
INPUT 100-240VAC, 50/60Hz
OUTPUT VOLTAGE 24VDC(+4,5pins; -7,8pins)

OTHERS
CERTIFICATION CE, FCC, RoHS, IPX5
PACKAGE CONTENTS Outdoor Wireless CPE
24V 1A Passive PoE Adapter
Pole Mounting Straps
AC Power Cord
Installation Guide
SYSTEM REQUIREMENTS Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7,
MAC OS, NetWare, UNIX or Linux.
Note: We recommend you to use one of following Web browsers for an improved user
experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.
ENVIRONMENT Operating Temperature: -30°C~70°C (-22℉~158℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing
