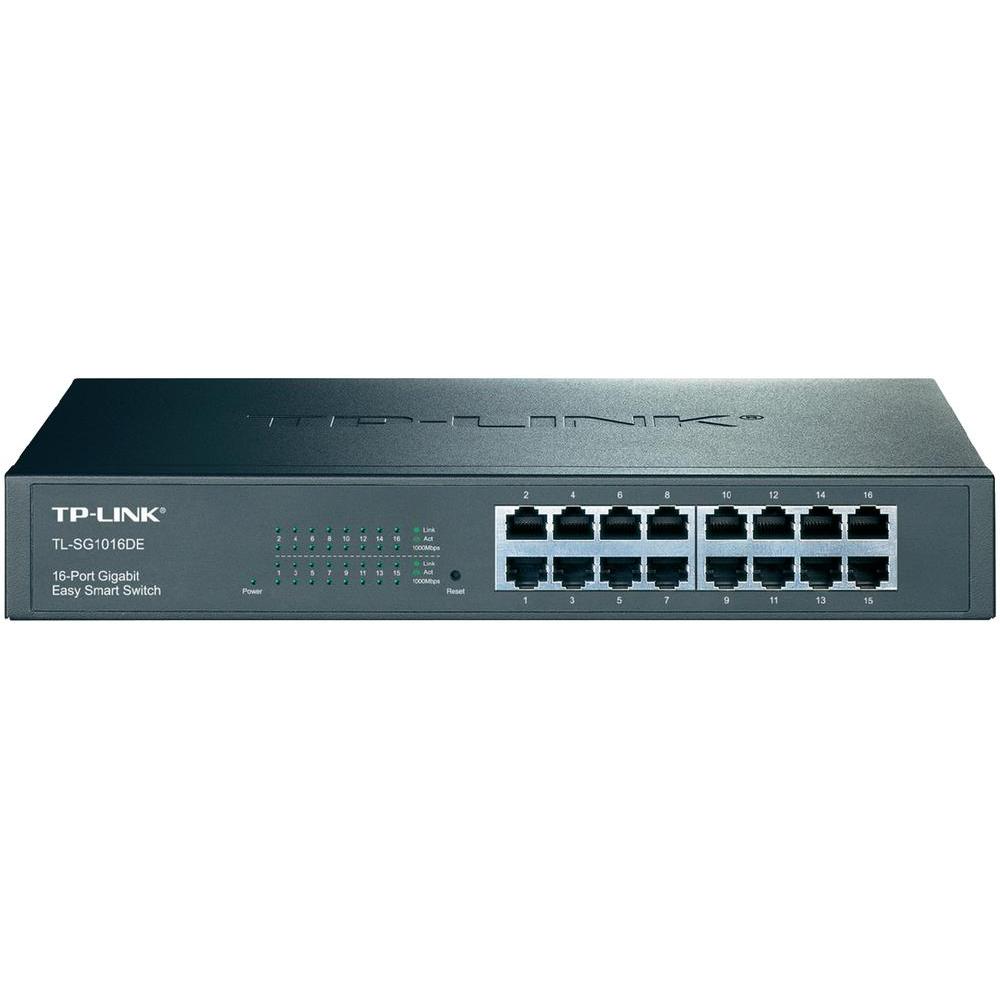

TP-LINK TL-SG1016DE - Tplink 16-Port Gigabit Easy Smart Switch, 16 10/100/1000Mbps RJ45 ports, MTU/Port/Tag-based VLAN, QoS, IGMP Snooping, 1U 13-inch rack-mountable steel case

Model

Brand

TP-LINK

Model

TL-SG1016DE

Spec

Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p

Network Management Type

Smart

Jumbo Frames

10KB

Primary Ports

16 x RJ45

Primary Port Speed

10/100/1000Mbps

Details

Uplink Ports

None

Spec

MAC Address Table

8K

Buffer Memory

512KB

Switching Method

Store and Forward

QoS

Support Port Based/802.1p Based priority
Support 4 priority queues
Rate Limit
Storm Control

Layer

Layer 2 Only

Port Mirroring

Yes

VLAN Support

Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN

Power

100-240VAC, 50/60Hz

Dimensions

1.7" x 11.6" x 7.1" (H x W x D)

Temperature

Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)

Humidity

Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Features

Features

16 10/100/1000Mbps ports provide instant large file transfers

Innovative energy-efficient technology reduces power consumption by up to 40%

IEEE 802.3x flow control provides reliable data transfers

10K Jumbo frame improves performance of large data transfers

Effective network monitoring via Port Mirroring, Loop Prevention and Cable Diagnostics

Port and tag-based QoS enable smooth latency-sensitive traffic

Abundant VLAN features improve network security via traffic segmentation

IGMP Snooping optimizes multicast applications

Centrally manage all Easy Smart Switches with Easy Smart Configuration Utility
