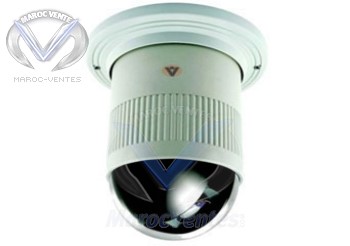

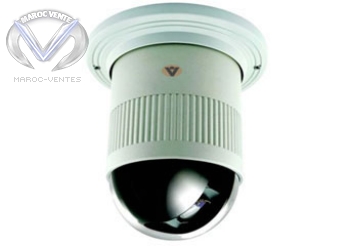

Visio KD-K60 - Speed Dome Camera's indoor
Chargement...
SPECIFICATION
Description | ||||
| Model | KD-K60 (indoor) | |||
| Camera | Optional camera | |||
| Communication | RS485 | |||
| Password protection | ON / OFF | |||
| Preset positions | 128 presets | |||
| Cruising tracks | 5 | |||
|
Self-study |
ON / OFF | |||
| Viewing angle | ON / OFF | |||
| Auto Back Home | ON / OFF | |||
| Alarm | 4 alarm inputs / 1 output | |||
| Pan range | 360 °endless | |||
| Pan speed | 0.5 °— 300 ° / sec. | |||
| Tilt range | 0 °— 100 ° | |||
| Tilt speed | 0.5 °— 150 ° / sec. | |||
| Auto-flip | 90 °vertical | |||
| Video protection | Yes | |||
| Communication interface protection | Yes | |||
| Power protection | Yes | |||
| IP Grade | IP66 | |||
| Acrylic dome color | transparent / dark cover | |||
| Input Power consumption | AC24V / 20W | |||
| Operation temperature | 0 — + 50 | |||
| Weight | 2.3kg | |||
| Dimension | Φ133×216.5mm (H) | |||
Camera Spec | ||||
| Zoom Camera | 45CP | 480CP | 980P | 1010P |
| Image Sensor | 1/4” CCD | 1/4” Exview CCD | ||
| Resolution | 480TVL | 480TVL/600TVL | ||
| Min. Illumination | 1Lux | 0.7Lux/0.01Lux | 0.7Lux/0.01Lux | 0.1Lux/0.01Lux |
| Zoom Magnification | 216X | 216X | 312X | 432X |
| Zoom Length | 4.1-73.8mm | 4.1-73.8mm | 3.5-91mm | 3.4-122.4mm |
| Angle of View | Wide48°Tele2.8° | Wide48°Tele2.8° | Wide54.2°Tele2.2° | Wide57.8°Tele1.7° |
| privacy masking | 8 | 8 | 8 | 8 |
| Wide Dynamic Range | No | Yes | ||
