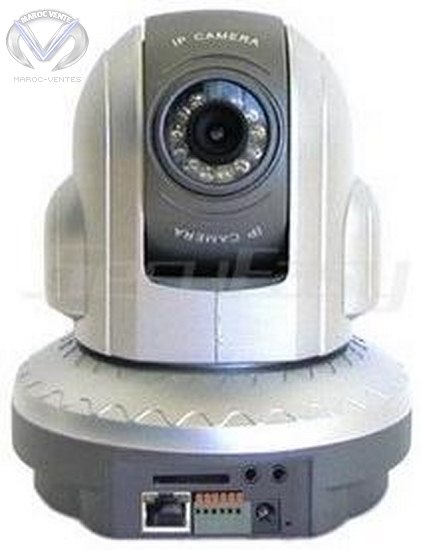

FICHE TECHNIQUE
Specifications
Pan/Tilt, Day/Night 12IR(15M)/6mm/board
Pan, +/-150∑(0° ~ 355°) Tilt: +/-30∑(0° ~ 180°)
Minimum illumination : 0.001Lux@F1.4
1/3" SONY CCD 420TVL H.264 compression
DI:720x576 half-D1(576*354) CIF:352x288 QCIF:176x144 * Built-in POE Function
Two channel audio: Built-in microphone and you can also connect to pickup
1ch alarm input,1ch output Alarm
10/100M bps high-speed Ethernet automatic detection
Motion detection, can be set to the e-mail notify or transmit images to FTP
High safe, set up multiple user accounts and passwords
Multi-level access: administrator / authorized user / anonymous login.
Support up to 20 remote viewers at the same time
Video file formats: AV or AVI for optional
To provide a multi-screen Windows software (1/4/6/8/9/12/16/20/25/30ch optional)
32-bit ARM9 RISC CPU, 2MB flash memory, 8 MB SDRAM, 32MB DDRAM
High-quality audio decode: G.726ADPCM 16-40kbps
Protocol: HTTP, TCP / IP, UDP, SMTP, PPPoE, DDNS, DHCP, FTP, SNMP, ARP, NTP, uPnP,TFTP
Power supply: DC 12V ,1.5
Accessories: one power, one disk, the disk includes software and manual
