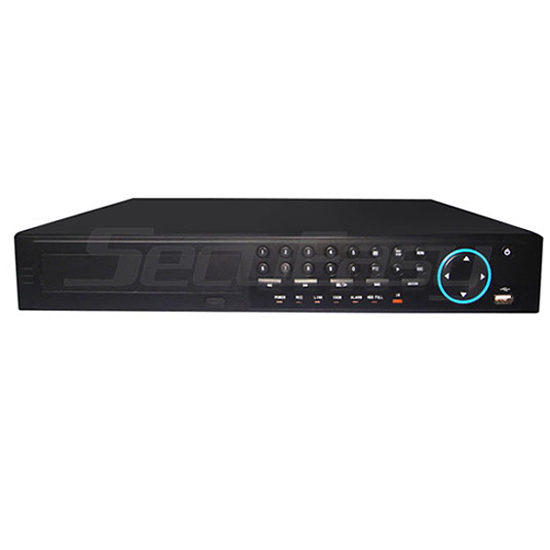

SecuEasy SE-RD736 - DVR 16CH H.264 Full D1

Name: DVR 16CH H.264 Full D1
Brand: SecuEasy
SKU: SE-RD736
Price: 3828.00 MAD
Availability: OutOfStock
Rating: 4.0 (1 reviews)

Chargement...

Résolution d'enregistrement D1/CIF disponible Sortie VGA et sortie BNC en même temps Tous les canaux audio simultanément Téléphone mobile 3G et e-mail Support 20 visiteurs au contrôle à distance

Disponibilité :Obsolète (Fin de vie)

Ce produit n'est plus proposé à la vente

Avis

Demander un devis par WhatsApp Demander un Devis

Description
Avis des clients

FICHE TECHNIQUE

Spécifications

16ch DVR? H.264,SATA?Support mouse?USB?network?PTZ?IE View
"Recording Resolution : PAL:720*576 1ch 25FPS,360*288 15ch 375FPS;
NTSC:640*480 1ch 30PPS,360*240 15ch 450FPS;"
16ch video input,2ch output(1ch VGA , 1ch BNC)
Audio input:16ch, output:1ch Support network remote?USB backup
Video Out :BNC ,VGA,HDMI Pentaplex?4 channel playback simultaneously.
Recording bit/frame adjustable
Support PTZ?Alarm Support 1pc 2000G SATA HDD,Support DVDRW,HDMI
Support IPHONE,Blackberry,Symbian,Windows,Google system 3G Mobile.

Fiche Technique

Model NO			SE-RD736
Feature	Operation System		Linux
	CPU		High Speed 600MHz * 2
	Memory Space		1*7G(DDR2 SDRAM)
	Flash Memory		256M/bit
Video	Video System		NTSC/PAL Switch Selectable
	Video Input		BNC*16 (1.0Vp-p 75Ω)
	Video Output		1 CH BNC(1.0Vpp 75Ω); 1 CH HD VGA Output; HDMI 1080P Output
	Spot		YES
	Loop Out		N/A
	VGA Output		800600;1024768;12801024;1440900
Audio	Input		16 CH RCA
	Output		1 CH RCA
	Talk Back		YES
Control	Mouse		USB2.0
	IR Controller		YES
Storage	Build In Interface		SATA HDD 4ea (Up to 8TB)
Display	Division		1,4,9,16
	Zoom		Preview and Playback Zoom Support
Recording	Compression		H.264 Main Profile
	Recording Mode		Manual/Schedule/Motion Detection/ Sensor
	Record Frame Rate (PAL/NTSC)	704480(704576)	400FPS/480FPS
		704240(704288)	400FPS/480FPS
		352240(352288)	400FPS/480FPS
	Quality		Best,Fine,Norm,Bit-rate settings (16kbps-2Mbps)
	Motion Detection		High, Higher, Middle, Low
	Water Mark		YES
Playback	Playback Frame Rate (PAL/NTSC)	704480(704576)	100FPS/120FPS
		704240(704288)	100FPS/120FPS
		352240(352288)	100FPS/120FPS
	Multi Channel Playback		1,4
	Speed		Normal, Slow & Fast(1/5,1/4,1/3,1/2,1,2﹡,3﹡,4﹡,5﹡)
	Search Method		Time, Even, Channels and Calendar
Communication	Remote Software		Remote Client, IE Brower, Mobile, CMS, Firefox, Google Ghrom
	Remote Operation		Remote view, Remote playback, Remote setup
	Network Service		TCP/IP, UDP, HTTP,DDNS, SMTP(SSL), LAN, DHCP, PPPOE
	WAN RJ45		10/100 Mbit/s
	Mobile		Mobile, Symbian, Iphone, Blackberry, Andrews
	3G External		Optional
	Wifi External		Optional
	GUI Interface		Supported GUI 16 Bit True Color
	PTZ Protocol		1*RS485, Support 18 Kinds of Protocol
Backup	Internal		Built-in DVR-RW(optional)
	External		USB2.0, Removable DVR-RW
	Network		YES
	File		H.264 Compression/AVI
General	Alarm In/Out		16ch Input/2ch Output
	RS-485		1
	RS-232		1
	Unit Dimension(mm)
	Operation Temperature		10°～50°
	Working Humidity		10%～90%
	Power Consumption		DC12V, 5A, 12-15W(Exclude HDD)
