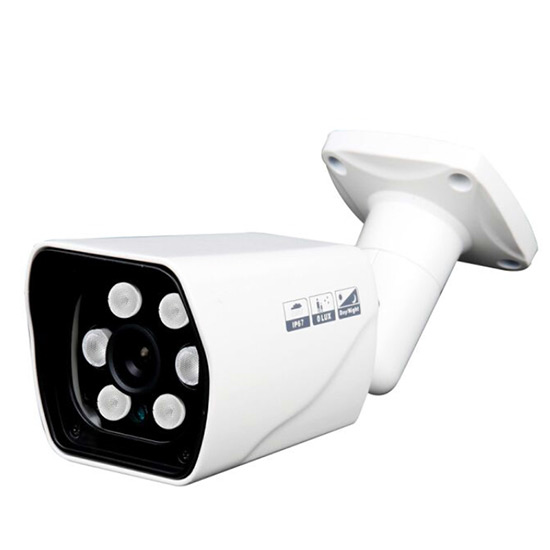

SecuEasy NA108VP - CAMERA IP EXT. POE 1MP/720P/1/4"/IR=80M/VARIF=2.8-12MM/IP67 NA108VT-P
Chargement... Avis
Features:
- 1 megapixel full real time,1/4’CMOS image sensor
- IR Led:28MIL×6PCS Array
- Lens: CS 12/8/6/16/mm/F2.0 (2.8-12mm Manual Zoom Lens Optional)
- H.264 high quality compression, Hisilicon scheme
- Water resistance: IP67
- Built in IR-CUT,low consumption
- Support dual stream
- Support Onvif
- 1*RJ45 Ethernet interface,10/100M self-adaptation; support multi-protocol ,such as RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP
Specifications:
Model NA108V
IR Led 28MIL×6PCS Array
IR Range 80M
Lens CS 12/8/6/16/mm/F2.0 (2.8-12mm Manual Zoom Lens Optional)
Working Temperature -20~+50℃
Compression H.264
Max.image Resolution 1280×720
System Architecture Embedded RTOS design, dual-core 32-bit DSP(Hisilicon 3518),pure hardware compression,WDT,128M
FLASH,128M DDR2
Image Sensor 1 megapixel, 1/4’’CMOS image sensor;;switching optical filters, day/night covert, infrared sensitive, photo
resistor signal linkage
Min. Illumination color 1.0Lux@F1.2,B&W 0.1 Lux@F1.2
Video Process H.264 codec, dual stream, AVI format record; 0.1M-6M bps bit rate (adjustable)
Frame Rate 1 MP@ 25 FPS,D1@ 25 FPS
Video Output Main Stream:1280×720，704×576
(video resolution); Sub Stream:704*576,352×288
Audio Interface N/A
Audio Process N/A
Network Interface 1*RJ45 Ethernet interface,10/100M self-adaptation;
Protocol RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP
Mobile phone Iphone, Android
USB Interface N/A
TF Interface N/A
Auto Iris Lens Type N/A
Photo Resistor 1*photo resistor interface, input signal and image by photo resistor, IR-CUT,IR LED linkage;
LED 1*IR LED control interface, control enable and disable IR LED by algorithm;
PTZ Interface N/A
Alarm Interface N/A
Optional E(POE)
Business Function configure by WEB, OSD(on screen display),real-time video transmission, motion detection , playback front-end
storage, center prompt and picture pop-up after IO alarm; support remote surveillance client software cms
Others DC12V input, power consumption: 3 watts
General
| Fabricant | SecuEasy |
Design
| Poids | |
| Dimensions |
