TrendNet TEW-722BRM - N300 Wireless ADSL 2+ MODEM Router sans fils 4 Ports

Chargement...

-33%

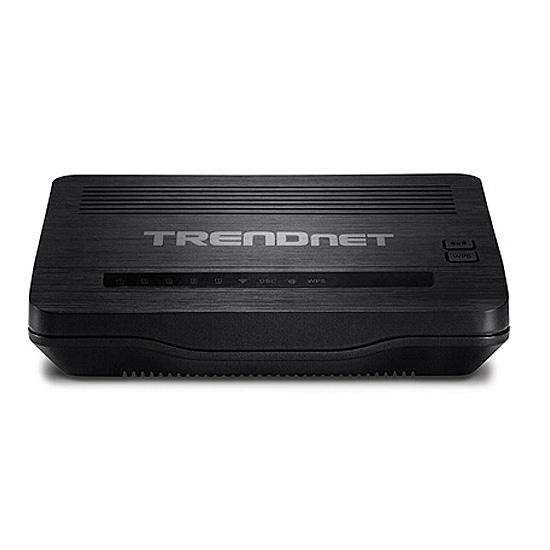

Trendnet N300 Wireless ADSL 2+ MODEM Router sans fils TEW-722BRM

Combination high speed modem and powerful wireless N300 router Compatible with ADSL 2/2+ ISP networks Pre-encrypted wireless for your convenience Wireless on/off button Four Ethernet ports for wired devices

Ce produit n'est plus proposé à la vente

Disponibilité : Obsolète (Fin de vie)

Evaluation :

Evaluer ce produit.

Description
Avis des clients

Fiche Technique

Trendnet Tew-722brm Ieee 802.11n Adsl2+ Modem/Wireless Router - 2.48 Ghz Ism Band - 2 X Antenna - 300 Mbps Wireless Speed - 4 X Network Port - Fast Ethernet - Yes Desktop EW-722BRM (Version v1.0R)

Caractéristiques :

ADSL Line Interface

ADSL: ANSI T1.413 Issue2, G.992.1 (G.dmt, Annex A, and Annex B), G.992.2 (G.lite)
ADSL2: G.992.3 (G.dmt.bis, Annex I, Annex J, and Annex L)
ADSL2+: G.992.5 (Annex L and Annex M)

Standards

IEEE 802.3
IEEE 802.3x
IEEE 802.3u
IEEE 802.3az
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n (up to 300 Mbps)

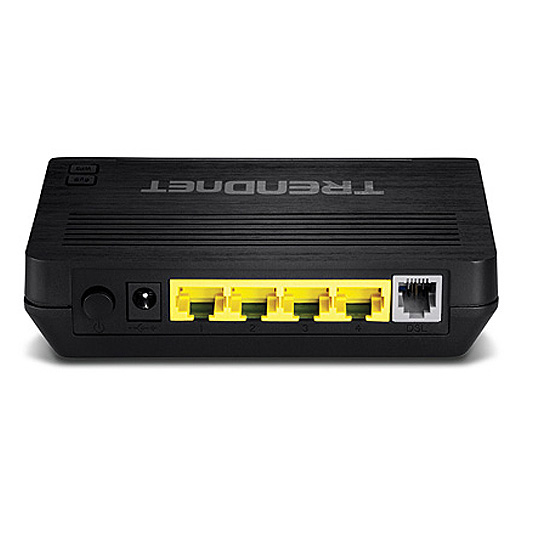

Hardware Interface

4 x 10/100 Mbps LAN ports
1 x RJ-11 WAN port
WPS button/reset button
Wi-Fi on/off button
Power on/off button
LED indicators
Mounting points

Special Features

Dynamic DNS support for dyn.com, no-ip.com, and easydns.com
Pre-encrypted wireless network
Up to 4 SSIDs
TR-069, TR-064, TR-098, TR-111, and TR-143 remote management support
Port based flow control
Port mapping
Spanning Tree support
LLMNR
Energy saving GREENnet technology

Access Control

Wireless encryption: WEP, WPA/WPA2-PSK, WPA/WPA2-RADIUS
Firewall: NAT, ALG, Port Trigger, SPI, Virtual Server, Special Applications, DMZ Host, PPTP/L2TP/IPsec VPN Passthrough, Multicast Passthrough, IGMP, MLD, allow/deny ping request from internet
Parental (Access) Controls: MAC, URL, IP Filter, domain blocking
DoS protection
Packet filter

Quality of Service

WMM
DCSP
WFQ
SP

Internet Connection Types

PPPoE (RFC-2516 Dynamic IP/Static IP)
PPPoA (RFC-2364 Dynamic IP/Static IP)
IPoA (RFC-1483 Routed)
Dynamic IP (IPoEoA/MER with DHCP)
Static IP
Bridge Mode (RFC – 1483 Bridged)
CIP (RFC-1577 Classic IP/ARP over ATM)
IPv6 (Static, Auto-configuration (SLAAC/DHCPv6), PPPoE, IPv6 in IPv4 tunnel, 6to4, 6rd)

Management/Monitoring

Local/remote web based management
Remote management (HTTP, CLI, FTPD, HTTPS)
TR-069 Remote management
Upgrade firmware
Backup/restore configuration
Logging – internal/syslog/email
Reboot
Restore to factory defaults
Ping test
ATM F4/F5 Loopback Diagnostics
Traffic meter

Routing

Static
Dynamic (RIP v1/2)

Frequency

2.412 - 2.484 GHz

Modulation

802.11b: CCK (11 Mbps & 5.5 Mbps), DQPSK (2 Mbps), DBPSK (1 Mbps)
802.11g: OFDM with BPSK, QPSK and 16/64-QAM
802.11n: BPSK, QPSK, 16-QAM, 64-QAM with OFDM

Media Access Protocol

CSMA/CA with ACK

Antenna Gain

2 x 4 dBi internal

Wireless Output Power/Receiving Sensitivity

802.11b: 15 dBm (max.)/-70 dBm (typical) @ 11 Mbps
802.11g: 15 dBm (max.)/-65 dBm (typical) @ 54 Mbps
802.11n: 15 dBm (max.)/-64 dBm (typical) @ 300 Mbps
