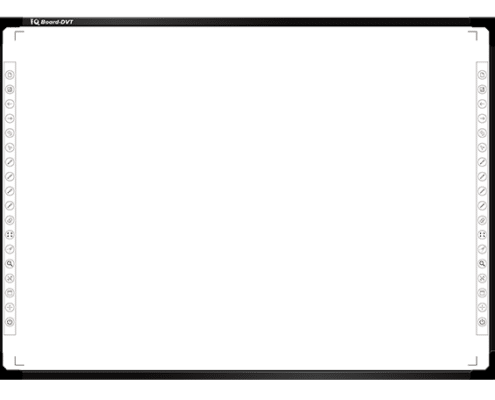

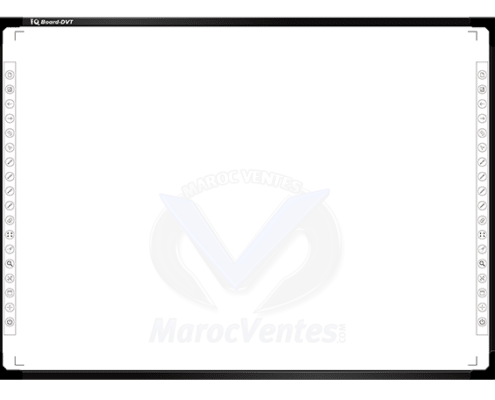

IQBOARD 87" Tableau Interactif

IQBOARD INTERACTIVE WHITEBOARD
IQBoard DVTQK – Apply Digital Vision Touch technology, there is no special pen required. With built-in high speed infrared cameras and thinner frame design, users can write on the interactive surface simultaneously with gesture recognition.

Name	IQBoard DVTQK
Model	DVTQK
Overall Diagonal Size (mm)	82″	87″	92″		100”
Overall size (mm)	1712*1228	1783*1313	2004*1240		2180*1350
Active area dimension (mm)	1648*1164	1719*1244	1938*1174		2114*1284
Active projection dimension (mm)	1564*1164	1719*1244	1931*1170		2054*1284
Aspect ratio	4:3			16:10
Touch points	10
Resolution	32768×32768
Technology	Digital vision touch technology
Hotkeys	18 hotkeys on both sides
Signal tracking rate	8m/s
Precision	0.05mm
Calibration	4 , 9 or 20 points
Softwares	IQ Interactive Education Platform 6.0, IQClass 6.0, IQClass Plus
Surface	Porcelain steel or painted steel
Power supply	USB, ≤600mW
Operating systems	Windows XP/2003/Vista/ 7/8/8.1/10, Linux, Mac 10.X
Storage environment	Temperature: -20℃ – 50℃ Humidity: 15%-85%
Working environment	Temperature: -20℃ – 50℃ Humidity: 15%-85%
Installation	Wall mounting, cabinets, stand mounting
Warranty	Three-year warranty. Please visit www.IQBoard.net for more information.
Certifications	CE, FCC, RoHS, ISO9001, ISO14001, ISO14021
