Accueil » IPBX Asterisk a 2 Lignes avec 12 Postes IP

oem Pack 12 - IPBX Asterisk a 2 Lignes avec 12 Postes IP

Name: IPBX Asterisk a 2 Lignes avec 12 Postes IP
Brand: oem
SKU: Pack 12
Price: 8668.98 MAD
Availability: OutOfStock

Chargement...

Avis

IPBX Asterisk a 2 Lignes avec 12 Postes IP

Obsoléte Fin de vie

IPBX Asterisk avec 2 FXO (2 Lignes Fixe RTC) et 8 Postes IP un poste pour le standard avec 8 BLF et 11 postes pour de direction.. Le système peux allez jusqu'a 30 Postes.

Disponibilité :Obsolète (Fin de vie)

Dernière mise à jour : 17/07/2025

Neuf en boîte

Ce produit n'est plus proposé à la vente

Demander un devis par WhatsApp Demander un Devis

Description
Avis des clients

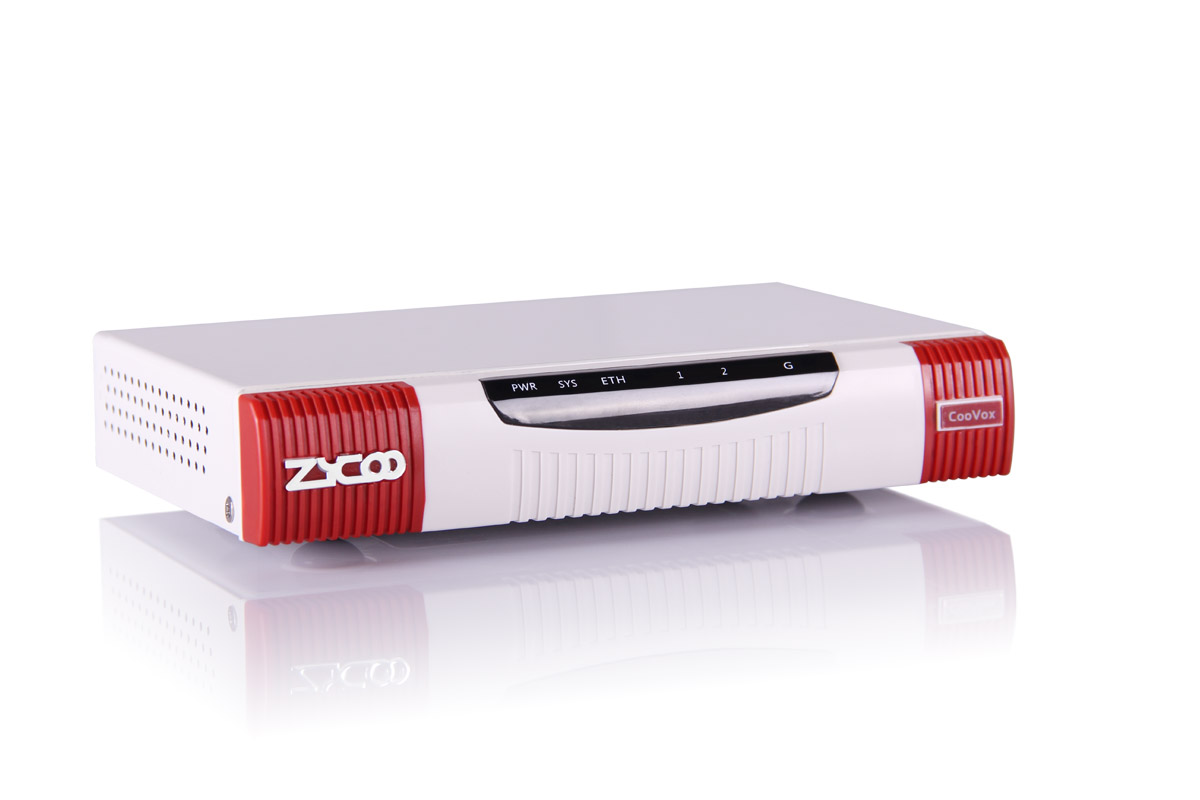

FICHE TECHNIQUE IPBX COOVOX U20 VERSION 2 :

Description

CooVox-U20 Version 2 IP Phone system is the second generation of Mini IP Phone system released from ZYCOO, meanwhile it's the first Mobile IP Phone system with the ability to use the GSM or UMTS (3G) module to connect to the mobile network for data transport.

CooVox-U20 is a next-generation smart IP PBX system designed and optimized for today's business telecommunication needs.

CooVox-U20 is an affordable, scalable, interoperable, secure and reliable solution which not only provides traditional PBX functions such as automated attendant and voicemail, but also many advanced features including remote extensions, remote office connection, conference bridge, call recording, call detail records (CDR), automatic call distribution (ACD), unified messaging (voice mail to email), and many more features.

SPECIFICATIONS

Up to 15 Concurrent Calls
Up to 20 Conferences
Up to 30 IP Phone Registers/Extensions
Recording: 36,000 mins (.gsm); 4,000 mins (.wav)
Voicemail: 36,000 mins (.gsm); 4,000 mins (.wav)

Codecs & Protocols

Audio Codecs: G.722/G.711-Ulaw/G.711-Alaw/ G.726/G.729/GSM/SPEEX
Video Codecs: H.261/H.263/H.263+/H.264
Protocols: SIP (RFC3261)/IAX2
DTMF: RFC2833/SIP INFO/In-Band

Security Features

Refuse SIP Register DoS
Refuse Abort Invite DoS
Refuse SSH Login DoS

Logs

PBX Log
Web Access Log
PBX Debug Log

Interface

1 Reset Button
1 Power Interface
1 Ethernet Interface
2 Analog Ports (FXO/FXS)
1 USB 2.0 Interface for Storage
1 Console Port

Hardware

Processor: DualCore A7(1GHz)
SDRAM: DDR3 512MB
Storage: 8GB SD Card (Industry Standard)
Power Supply: Input AC 100~240V, 50/60Hz;
Output DC 12V/1A

System

Asterisk 1.8

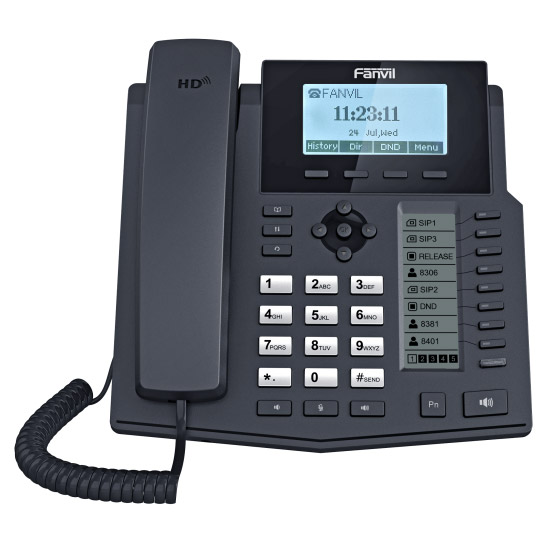

FICHE TECHNIQUE DU TELEPHONE IP X5:

Téléphone IP X5 avec une clé intelligente DSS-cartographie LCD pour le marché de l'entreprise. X5 est livré avec des fonctionnalités d'entreprise complets et l'interopérabilité avec les principales plates-formes, comme Asterisk, Broadsoft, 3CX, Elastix, etc.

Le DSS-clé cartographie LCD est conçu avec intelligence pour soutenir l'utilisation dynamique de remplacer les modules d'extension. Il y a 8 touches DSS correspondent à l'écran LCD de fournir ligne dynamique / DSS / BLF fonctions jusqu'à cinq pages à 40 touches DSS totales virtualisés. L'utilisateur peut configurer / personnaliser chaque touche DSS dans chaque page. Chaque touche DSS a une indication LED de couleurs vert, rouge, et jaune pour refléter l'état de la touche. Il ya aussi un bouton DSS de notification d'événement pour avertir l'utilisateur chaque fois qu'il ya un événement dans un autre page (s). Un bouton page de raccourci est également conçu pour permettre à l'utilisateur de basculer rapidement entre les pages. X5 est le choix le plus économique de bureaux de PME et grandes entreprises superviseurs.
Optionelle

Main Features

Call out / answer / reject

Mute / Unmute (microphone)

Call Hold / Resume

Call Waiting

Intercom

Caller ID Display

Speed Dial

Anonymous Call (Hide Caller ID)

Call Forwarding (Always/Busy/No Answer)

Call Transfer (Attended/Unattended)

Call Parking/Pick-up (depending on server)

Redial/Auto-Redial

Do-Not-Disturb (per line / per phone)

Auto-Answering (per line)

Voice Message (on server)

Local 3-way Conference

Hot Line

Hot-Desking

Specifications

Generic

6 SIP Lines

HD Voice

PoE Enabled

2 LCDs (Main + DSS)

Handset(HS) / Hands-free(HF) / Headphone(HP) mode

Intelligent DSS Keys

Desktop / Wall-mount installation

Optional External Power Supply

Economical and Environmental friendly package

Industrial Standard Certifications: CE/FCC

Call Features

Call out / answer / reject

Mute / Unmute (microphone)

Call Hold / Resume

Call Waiting

Intercom

Caller ID Display

Speed Dial

Anonymous Call (Hide Caller ID)

Call Forwarding (Always/Busy/No Answer)

Call Transfer (Attended/Unattended)

Call Parking/Pick-up (depending on server)

Redial/Auto-Redial

Do-Not-Disturb (per line / per phone)

Auto-Answering (per line)

Voice Message (on server)

Local 3-way Conference

Hot Line

Hot-Desking

Phone Features

Phonebook (500 entries)

Remote Phonebook (XML/LDAP)

Call log (300 entries, in/out/missed)

Black/White List Call Filtering

Voice Message Waiting Indication (VMWI)

Programmable DSS/Soft keys

Network Time Synchronization

Action URL / Active URI

Audio

HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz Frequency Response)

Wideband ADC/DAC 16KHz Sampling

Narrowband CODEC: G.711a/u, G.723.1, G.726-32K, G.729AB

Wideband CODEC: G.722

Full-duplex Acoustic Echo Canceller (AEC) – Hands-free Mode, 96ms tail-length

Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR)

Packet Loss Concealment (PLC)

Dynamic Adaptive Jitter Buffer up to 300ms

DTMF: In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO

Networking

Physical: 10/100Mbps(X5), 10/100/1000Mbps(X5G) Ethernet, dual bridged port for PC bypass

IP Configuration: Static / DHCP / PPPoE

Network Access Control: 802.1x

VPN: L2TP (Basic Unencrypted) / OpenVPN

VLAN

QoS

Protocols

SIP2.0 over UDP/TCP/TLS

RTP/RTCP/SRTP

STUN

DHCP

PPPoE

802.1x

L2TP (Basic Unencrypted)

OpenVPN

SNTP

FTP/TFTP

HTTP/HTTPS

TR069

RFCs:

354/1321/1350/1769/1889/1890/2131/2132/2616/

2617/2661/2833/2976/3261/3262/3263/3264/3265/

3268/3311/3489/3711/4346/4566/5630/

5865

Deployment & Maintenance

Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/

DHCP OPT66/SIP PNP/TR069

Web Management Portal

Web-based Packet Dump

Configuration Export / Import

Phonebook Import/Export

Firmware Upgrade

Syslog

Physical Specifications

Main LCD x1: 128x64 dot-matrix with backlit

DSS Key-mapping LCD x1: 64x192 dot-matrix

Keypad: 38 keys, including

• 4 Soft-keys

• 3 Function keys

• 4+1 Navigation keys + OK

• 12 Standard Phone Digits keys

• 3 Volume Control keys, Up/Down/Mute(Microphone)

• 1 Hands-free key

• 8 DSS Keys with tri-color LED

• 1 Page-Switch (PS) key with tri-color LED

• 1 Page-Jump/Configuration (PJC) key

HD Hands-free Speaker (0 ~ 7KHz) x1

HD Hands-free Microphone (0 ~ 7KHz) x1

HD Handset (RJ9) x1

Standard RJ9 Handset Wire x1

1.5M CAT5 Ethernet Cable x1

RJ9 Phone Jacket x2: Handset x1, Headphone x1

RJ45 Ethernet Jacket x2: Network x1 (802.3AF POE Class 1 Enabled),

PC x1 (Bridged to Network)

Main Chipset: Broadcom

DC Power Input: 5V/1A

Power Consumption: (X5) Idle – ~ 1.1W, Peak – ~1.8W

(X5G) Idle – ~ 1.55W, Peak – ~2.25W

Working Temperature: 0 ~ 40℃

Working Humidity: 10 ~ 65%

Dual-Functional Back Rack x1: Desktop Stand / Wall-mount

Color: Black

Package Dimensions: 285x270x65mm (W x H x L)

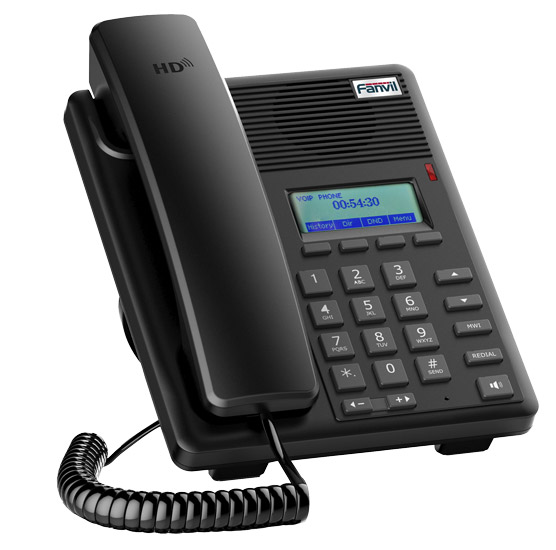

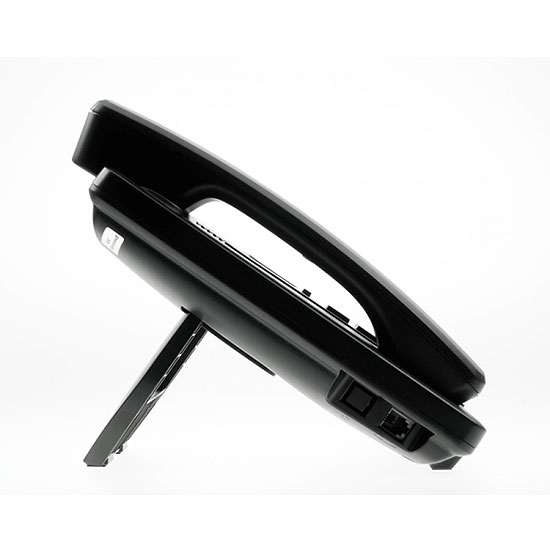

FICHE TECHNIQUE DU TELEPHONE IP F52HP:

The Business IP Phones from Fanvil come with an elegant design, HD voice quality both for speaker and headphone, BLF keys and POE, being the right choice for any office in SME range. Fanvil IP Phones cover the entire range from Entry up to Advanced Business Level.

Fanvil IP Phones covers all SIP and IAX2 features required in Enterprise usage at a very competitive price. This allows to system integrators to integrate projects at low cost, comparable with analogue or digital classic solutions, but providing all IP features and benefits.

With several SIP lines, integrated Fanvil IP Phones provide the opportunity to register them to different servers (IP PBX) and service providers to ensure back-up and cost reduction.
