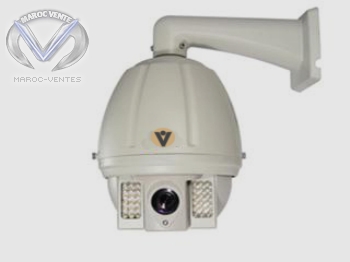

Visio KD-NVC810IR - IP IR high Speed Dome Camera
Chargement... Avis
FICHE TECHNIQUE | |
Description du produit | |
| KD-NVC810IR | IP IR high Speed Dome Camera |
Network Spec: | |
| Video compression | H.264 Main Profile@Level 3/MJPEG optional |
| Video Compression Bit rate | 16Kbit/S～8Mbit/S |
| Supported Protocols | TCP, UDP, IP, HTTP, FTP, SMTP, DHCP, DNS,ARP, ICMP, POP3, NTP, IPsec, UPNP,RTP,RTCP |
| Streaming Format | Optional Video Streaming or Audio&Video composite Streaming |
| Audio streaming | Two Way Audio connector(Optional) |
| Local Storage | TF card, Max. 32G(Optional) |
| System Interface | 10M/100M self-adapting Ethernet port, power supply cable. |
| Support mobile suveillance | |
Speed Dome Spec: | |
|
preset |
64presets |
|
Pan rotation range |
360° Endless |
|
Tilt range |
Tilt 90° |
|
Manual pan speed |
6°—14°/S |
|
Manual vertical speed |
6°—14°/S |
|
Tour Group |
4 groups / 16 Preset Positions for each/dwelling time at each preset position can be set. |
|
360º Scan |
Vertical Angle can be set freely |
|
IR Lamp |
LED Array / 2 Groups / Visible distance reaches 100m |
|
IR Lamp Triggering |
Triggered by photosensitive resistor (Default) / triggered by camera module (IR Lamp turned on when camera module turns to Black & White mode) |
|
Communication |
RS485-422,AD,BI-PHASS code, axis visual control |
|
Protocol (Available camera) |
, Hitachi, CNB, LG |
|
Baud rate (RS485) |
1200／2400／4800／9600bps |
Environmental | |
| Operating Temp | -30°C～+60°C |
| Operating Humidity | 0～90% |
| Power Supply |
DC15V (4A) (Adapter should be within 2 meters to the unit) |
| Power Consumption |
35W |
| Weight |
6.1kg |
| Caractéristiques clés | |
| Contenu de la boîte | |
| Poids | |
| Dimensions |
