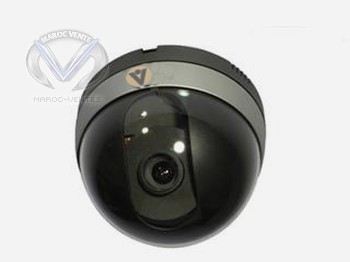

Visio KD-NVC81D-42S - IP Dome Camera 420 TVL Support Mobile Suveillance
Chargement... Avis
Fiche Technique:
Description
| Lens | Build-in 4-9mm high quality vari-focal lens inside | |
| Video compression | H.264 Main Profile@Level 3/MJPEG optional | |
| Video Definition | CCD PAL:352*288(CIF),704*288(2CIF),704*576(D1);
CCD NTSC:352*240(CIF),704*240(2CIF),704*480(D1) |
|
| Video Frame Rate | PAL: 1-25frames/second
CCD NTSC:1-30frames/second |
|
| Video Compression Bitrate | 16Kbit/S～8Mbit/S | |
| Audio Input | 1channel, linear input | |
| Audio Compression | G.726 | |
| Audio Output | 1channel,RCA interface, linear output | |
| Supported Protocols | TCP, UDP, IP, HTTP, FTP, SMTP, DHCP, DNS,ARP, ICMP, POP3, NTP, IPsec, UPNP,RTP,RTCP | |
| System Interface | RS232 port (convert to 10M/100M self-adapting Ethernet port, and power supply, Alarm port) | |
| Support mobile suveillance | ||
| Alarm Input | 1 channel on/off input, supporting NO(normally open) or NC(normally close) sense. | |
| Alarm Output | 1 channel on/off output,120VAC 1A/24VDC 1A | |
| Input Power Supply | DC 12V,1A | |
| Operating Temperature | -10 ~ +55℃ | |
| Operating Humidity | RH85%MAX | |
| Maximum Power | Less than 7W (IR on) | |
| Dimension | 11.3cm(L)*12.9cm(W) | |
| Net weight | 0.46kg | |
General
| Fabricant | Visio |
Design
| Poids | |
| Dimensions |
