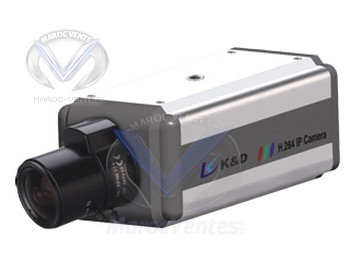

Visio KD-NVC91D-42S - IP Box Camera Port1 RS485& Port adapting Ethernet
Chargement... Avis
FICHE TECHNIQUE
Description du produit | ||
| KD-NVC91D-42S | 420TVL, 0.5LUX, 1/3 Super HAD CCD | |
| Auto Iris Control | DC drive | |
| Video compression | H.264 Main Profile@Level 3/MJPEG | |
| Video Frame Rate | CCD | PAL: 1-25frames/second
NTSC:1-30frames/second |
| Video Compression Bit rate | 16Kbit/S～8Mbit/S | |
| Audio Input | 1channel,linear input | |
| Audio Compression | G.726 | |
| Audio Output | 1channel,RCA interface,linear output | |
| Audio talk-back | Support Audio two-way talk | |
| Supported Protocols | TCP, UDP, IP, HTTP, FTP, SMTP, DHCP, DNS,ARP, ICMP, POP3, NTP, IPsec, UPNP,RTP,RTCP | |
| System Interface | 10M/100M self-adapting Ethernet port, | |
| 1 RS485 port,1 RS232 port (supports transparent protocols) | ||
| SD card slot | ||
| Support mobile suveillance | ||
| Alarm Input | 1 channel on/off input,supporting NO(normally open) or | |
| NC(normally close) sense. | ||
| Alarm Output | 1 channel on/off output,120VAC 1A/24VDC 1A | |
| Input Power Supply | DC 12V,1A | |
| Maximum Power | Less than 6W | |
| Operating Temperature | -10 °C+55°C | |
| Operating Humidity | RH85%MAX | |
| Dimension | 14cm(L)*5.5cm(W)*6.3cm(H) | |
| Net weight | 0.42kg | |
