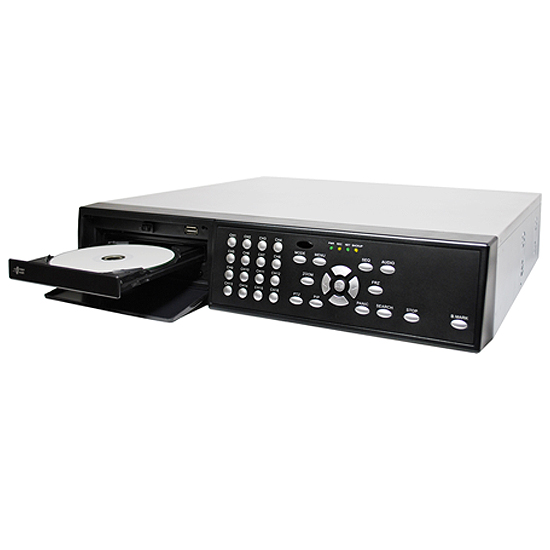

Neotech HS-08240-T2 - Network DVR, Supports Network Time Server and DDNS

MODEL NO.

VIDEO IN / OUT

Video Input

8 BNC

Monitor Out

1

VGA Out

1

HDMI Out

1

Audio Input / Output

4 / 1 (RCA)

Alarm Input / Relay out

4 / 1

Video Compression

H.264 (Hardware Compression)

Display Rate

Real-Time Display

Display Resolution

720 X 480 (N), 720 X 576 (P)

Display Mode

1, 4, 6, 8 , 9, 13 , 16, SEQ,ZOOM

Recording Rate

720×480 (720×576)

120/100fps

720×240 (720×288

240/200fps

360×240 (360×288)

240/200fps

Recording Mode

Continuous, Motion, Alarm

Search Mode

Date/Time, Event

Multi-tasking

Pentaplex ( Live / Record / Playback / Backup / Network )

Operating System

Embedded Linux OS

Backup

USB / Network / DVD

Multi-Language

English, French, German, Chinese…etc..

Remote Function

Remote Monitoring (Live View) / Playback / Setup / PTZ Control / Backup

Network Protocol

DHCP / Static IP / DDNS

Network Time Protocol

Yes

Internal Buzzer

Yes

RS485 Port

1ea (For PTZ )

Network Port

10/100 Ethernet

USB Port

USB 2.0 (2ea)  ※(For Software upgrade / Setup In/Export and Mouse)

IR Remote Control port

Yes

Primary Storage

2 Internal SATA HDDs

Operate

USB MOUSE, Front panel, IR remote control

Dimension(mm)

430mm(W) x 330mm(D) x 92mm(H)

Weight(N.W)

Approx 6.5 kg (w/o HDD)

Power Supply

DC Adapter(DC12V 5A above)
