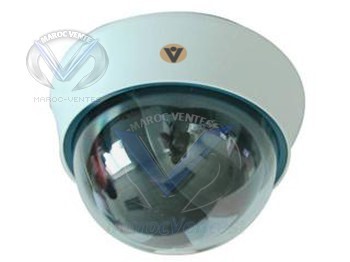

Visio KD-MP4390E - Dome Camera super had CCD with 540TVL
Chargement... Avis
SPECIFICATION
Description | |
| MODEL | KD-MP4390E |
| Image Sensor | 1/3" super had CCD |
|
Horizontal resolution |
540TV |
| System | PAL / NTSC |
| Effective pixels |
PAL:795(H)x596(V) |
|
NTSC:811(H)x508(V) | |
| Minimum illumination |
0.2Lux /F1.2 |
| Video output | 1.0Vp-p(75omhs,Compsite) |
| S/N Ratio | ≥48dB(AGC off) |
| Synchronization | Internal |
| White Balance | Auto |
| Auto Gain Control (AGC) | Auto |
| Electronic Shutter | 1/50(60)～1/120,000s |
| Back Light Compensation | Auto |
| Lens | 4~9mm varifocal lens |
| Power Supply | DC12V |
|
Power Consumption |
≤4.5W |
| Operating Temperature | － 10°C ~ 50°C |
| Dimensions | 130mm(Φ)×90mm(H) |
| Weight | 300g |
