Cisco WS-C2960X-48TS-LL - Catalyst 2960-X 48GigE 2 x 1G SFP LAN Lite

Table 1, WS-C2960X-48TS-LL Specs.

Product Details

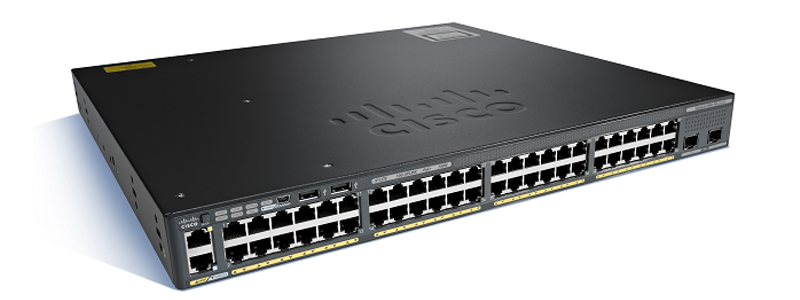

Figure 2 shows the front panel of WS-C2960X-48TS-LL.

Note:

① Ethernet management port                                        ⑥ SFP module ports

② Mode button                                                               ⑦ 48 x 10/100/1000 ports

③ Switch LEDs                                                               ⑧ CONSOLE LED

④ USB mini-Type B (console) port                                ⑨ MGMT LED

⑤ USB Type A ports                                                      ⑩ RJ-45 console port

·The Switch LEDs include SYST, STAT, SPEED, RPS, MAST, and STACK LEDs.

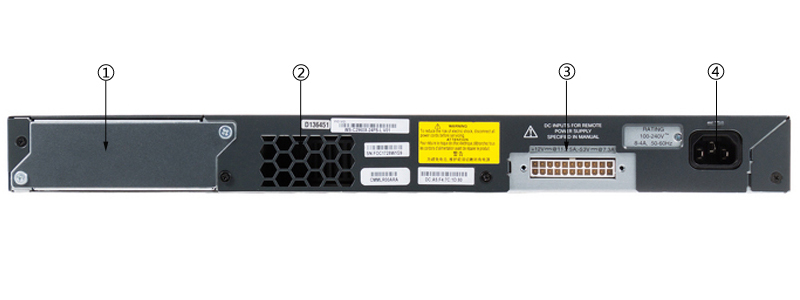

Figure 3 shows the back panel of WS-C2960X-48TS-LL.

Pay attention that it takes WS-C2960X-48TS-L for reference. These two switches' back panels are similar but WS-C2960X-48TS-LL has not FlexStack-Plus module slot.

Note:

① FlexStack-Plus module slot and cover                                   ③ RPS Connector

② Fan Exhaust                                                                           ④ AC power connector
