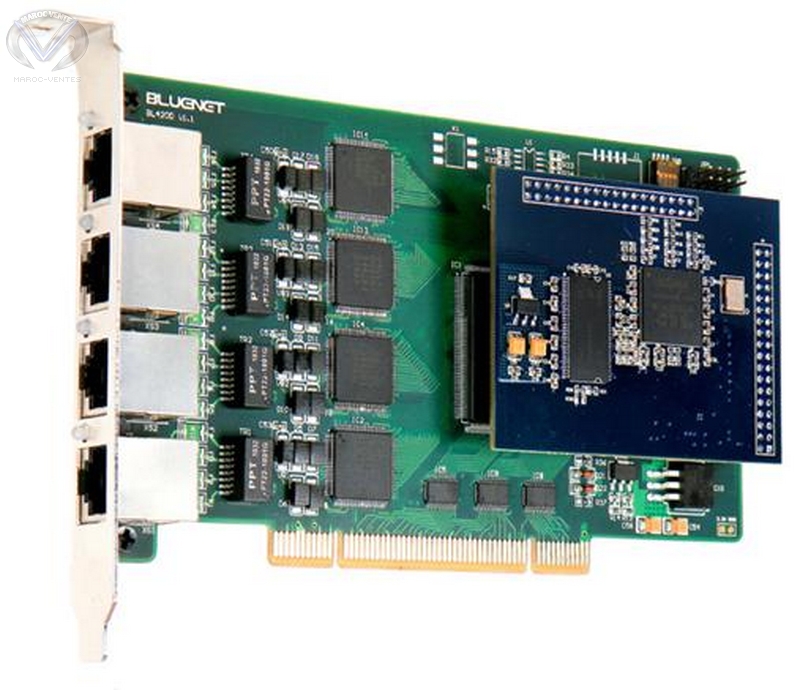

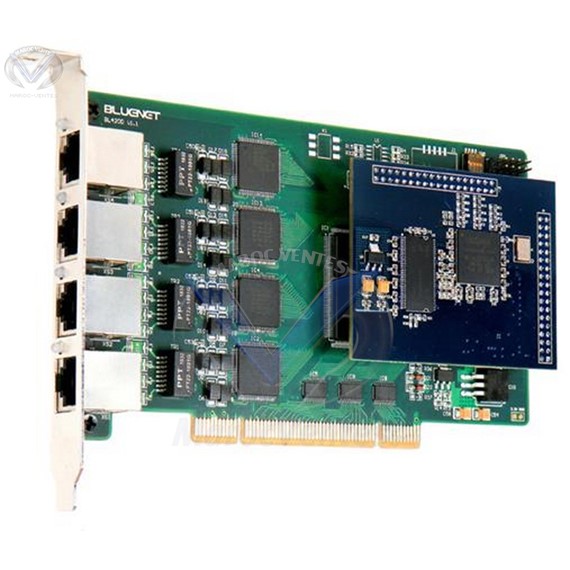

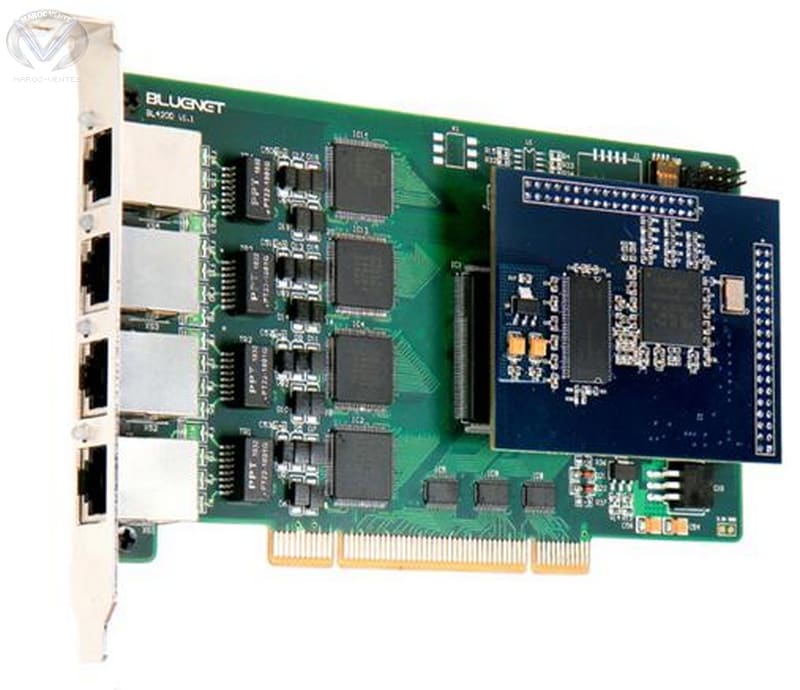

oem BL420D-EC - Carte PCI 4-Ports avec Support EC Module
Chargement... FICHE TECHNIQUE
Technical Specifications | |
| Size | 9.5* |
| Configure | BL420D-EC– Quad span E1/T1/J1 |
| BL220D-EC– Dual span E1/T1/J1 | |
| BL120D-EC– Single span E1/T1/J1 | |
| PCI | Auto adaptive to 5v and 3.3v PCI 2.2 bus. Auto configuration and compatiable with popular mianboards |
| 32bits, | |
| PCIe | Support PCI Express 1*X,4*X,8*X,16*X |
| PHY | RJ45 120/75Ω DSX-1/CSU-1 Line-buildouts |
| Framer | Two Standalone framer to process receive and transmit frame. Supporting Frame formats:CRC4/non-CRC4/ESF/D4T1/E1 |
| Automatic produce DS1 idle code. Supporting T1.403-1998.Producing and checking RAI-CI/AIS-CI/RAI. | |
| RCL,RLOS,RRA,RAIS warning interrupt | |
| Standards | ANSI: T1.403-1995, T1.231–1993, T1.408 AT&T: TR54016, TR62411 ITU: G.703, G.704, G.706, G.736, G.775, G.823, G.932, I.431, O.151, Q.161 ITU-T: Recommendation I.432–03/93 B-ISDN User-Network Interface—Physical Layer Specification ETSI: ETS 300 011, ETS 300 166, ETS 300 233, CTR12, CTR4 Japanese: JTG.703, JTI.431, JJ-20.11 (CMI Coding Only) |
| Environment | Temperature range:0 – |
| Leds | One tri-colors led for every interface.Total leds: 4 |
